Vehicle Info NeededCOMP CAMSPART NUMBER: 249-106200

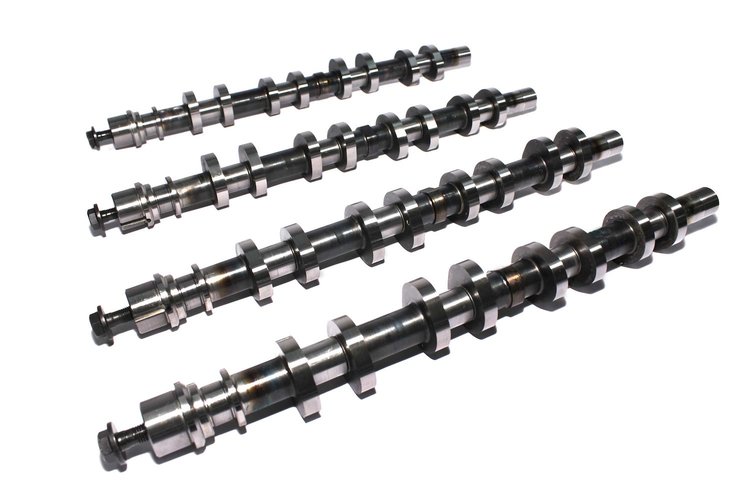

Comp Cams Xtreme Energy Hydraulic Roller Camshafts
$1,70796$2134.95You Save$426.99
Ships on 09/09/2026
Lowest Price GuaranteeFord 4.6L/5.4L DOHC MODULAR 4V 1993-Present
- Xtreme RPM Series Hydraulic Roller Swinging Follower Camshaft
Lift: .425"/.425"
Duration: 269°/265°
Lobe Separation Angle: 114°
RPM Range: 1800-6200
Street and strip performance. Needs lower gears, exhaust upgrades, larger throttle body and mass air sensor, bigger fuel injectors and a 2200+ RPM stall with automatics. Requires computer modifications. Rough idle.
Ford; Modular; 4-Valve; Mustang; Mustang GT; SN95; 4V; Mercury
Street and strip performance. Needs lower gears, exhaust upgrades, larger throttle body and mass air, bigger fuel injectors and a 2200+ stall with automatics. Requires custom tuning. Rough idle.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height6.4
Package Width6.5
Package Length25.6
Weight27.7 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)230
Cam StyleHydraulic roller follower
Grind NumberXE270AH-114
Exh. Duration Advertised (Deg)265
Engine Make/SizeFord 4.6L 4V
Intake Valve Lift With Factory Rocker Arm Ratio (I0.425
Int. Duration @ .050 In. (Deg)234
Basic Operating Rpm Range1,800-6,200
Intake Valve Lift0.425 in (10.795 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)269
Lobe Separation (Deg)114
Rpm Range1800-6200
Advertised Duration269 int./265 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.425
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.425 int./0.425 exh.
QuantitySold as a set of 4
Exhaust Valve Lift0.425 in (10.795 mm)
Advertised Intake Duration269
Intake Duration At 050 Inch Lift234
Exhaust Duration At 050 Inch Lift230
Advertised Exhaust Duration265
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift234 int./230 exh.
Valve Springs RequiredYes
Vendor Part Number106200
Package Qty1
Package TypeEA
