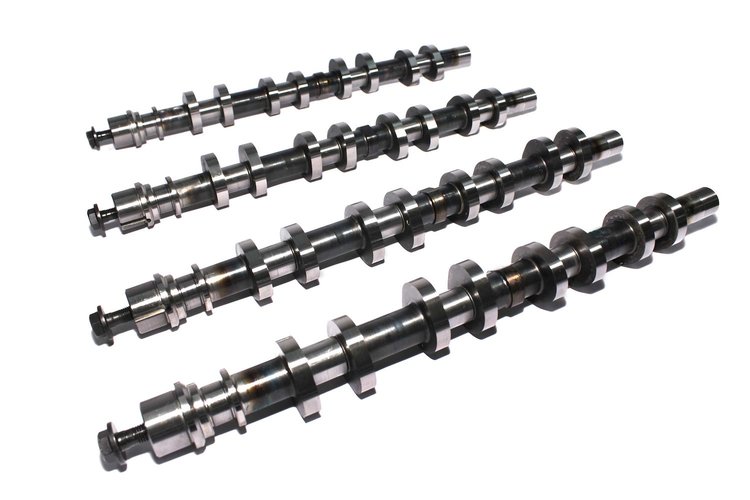

Comp Cams Xtreme Energy Hydraulic Roller Camshafts
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-106260

Comp Cams Xtreme Energy Hydraulic Roller Camshafts

$2,13495
ShippingShips on 09/09/2026
Lowest PriceLowest Price Guarantee

Ford 4.6L/5.4L DOHC MODULAR 4V 1993-Present
    Xtreme XE-R Supercharged & Nitrous Series Hydraulic Roller Swinging Follower Camshaft
    Lift: .475"/.450"
    Duration: 257°/259°
    Lobe Separation Angle: 116°
    RPM Range: 1200-5800

    Street performance with excellent torque. Works well in supercharged or nitrous engines. Requires valve spring part number 249-26123. No computer modifications necessary.

    Ford; Modular; 4-Valve; Mustang; Mustang GT; SN95; 4V; Mercury


    Street performance with excellent torque. Works well in supercharged or nitrous engines. Requires custom tuning.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft
BrandCOMP CAMS
Package Height6.4
Package Width7.2
Package Length25.5
Weight28.9 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)224
Cam StyleHydraulic roller follower
Grind NumberXE258BH-116
Exh. Duration Advertised (Deg)259
Engine Make/SizeFord 4.6L 4V
Intake Valve Lift With Factory Rocker Arm Ratio (I0.475
Int. Duration @ .050 In. (Deg)222
Basic Operating Rpm Range1,200-5,800
Intake Valve Lift0.475 in (12.065 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)257
Lobe Separation (Deg)116
Rpm Range1200-5800
Advertised Duration257 int./259 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.45
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.475 int./0.450 exh.
QuantitySold as a set of 4
Exhaust Valve Lift0.45 in (11.43 mm)
Advertised Intake Duration257
Intake Duration At 050 Inch Lift222
Exhaust Duration At 050 Inch Lift224
Advertised Exhaust Duration259
Lifter TypeHydraulic Roller
Duration At 050 Inch Lift222 int./224 exh.
Valve Springs RequiredYes
Vendor Part Number106260
Package Qty1
Package TypeEA
