Vehicle Info NeededCOMP CAMSPART NUMBER: 249-106300

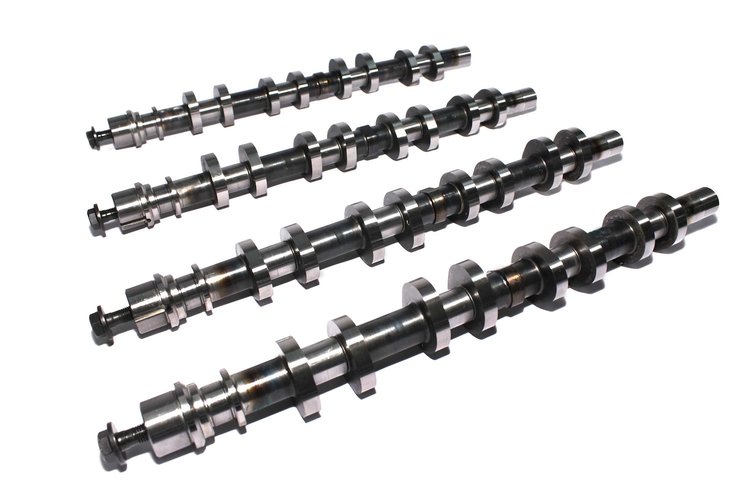

Comp Cams Xtreme Energy Hydraulic Roller Camshafts
$1,70796$2134.95You Save$426.99
Ships on Sep 04, 2026
Lowest Price GuaranteeFord 4.6L/5.4L DOHC MODULAR 4V 1993-Present
- Xtreme XE-R Series Hydraulic Roller Swinging Follower Camshaft
Lift: .475"/.450"
Duration: 261°/259°
Lobe Separation Angle: 114°
RPM Range: 1500-5800
Street performance with excellent in normally aspirated engines. Requires valve spring part number 249-26123. No computer modifications necessary. Noticable idle.
Ford; Modular; 4-Valve; Mustang; Mustang GT; SN95; 4V; Mercury
Street performance with excellent torque in normally aspirated engines. Requires custom tuning. Noticeable idle.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
- Comp Cams Xtreme XE-R series can be used in any street or street/strip application where both throttle response and top-end horsepower is desired. These camshafts are designed to take advantage of the latest improvements in valve train components and the newest developments in camshaft design. Their aggressive lobe design produces better throttle response and top end horsepower than other cams with the same duration @ .050'' lift, while delivering increased engine vacuum. We do not recommend the use of stock valve train components with these camshafts due to the aggressive lobe designs.
Part TypeCamshaft
Product LineComp Cams Xtreme XE-R Series Hydraulic Roller Camshafts
BrandCOMP CAMS
Package Height6.4
Package Width7.2
Package Length25.6
Weight33.5 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)224
Cam StyleHydraulic roller follower
Grind NumberXE262AH-114
Exh. Duration Advertised (Deg)259
Engine Make/SizeFord 4.6L 4V
Intake Valve Lift With Factory Rocker Arm Ratio (I0.475
Int. Duration @ .050 In. (Deg)226
Basic Operating Rpm Range1,500-5,800
Intake Valve Lift0.475 in (12.065 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)261
Lobe Separation (Deg)114
Rpm Range1500-5800
Advertised Duration261 int./259 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.45
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.475 int./0.450 exh.
QuantitySold as a set of 4
Exhaust Valve Lift0.45 in (11.43 mm)
Advertised Intake Duration261
Intake Duration At 050 Inch Lift226
Exhaust Duration At 050 Inch Lift224
Advertised Exhaust Duration259
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift226 int./224 exh.
Valve Springs RequiredYes
Vendor Part Number106300
Package Qty1
Package TypeEA
