Vehicle Info NeededCOMP CAMSPART NUMBER: 249-106360

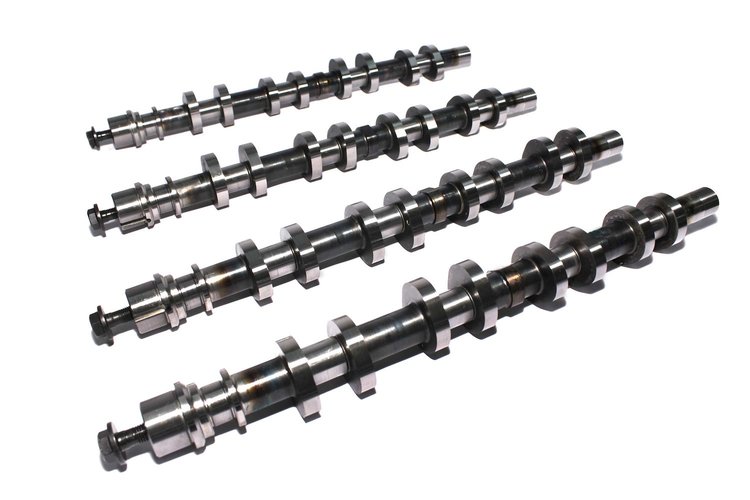

Comp Cams Xtreme Energy Hydraulic Roller Camshafts
$2,13495
Ships on 09/09/2026
Lowest Price GuaranteeFord 4.6L/5.4L DOHC MODULAR 4V 1993-Present
- Xtreme XE-R Supercharged & Nitrous Series Hydraulic Roller Swinging Follower Camshaft
Lift: .475"/.450"
Duration: 265°/267°
Lobe Separation Angle: 116°
RPM Range: 1500-6000
Serious street effort for supercharged or nitrous engines. Requires computer modifications, lower gears and valve spring part number 249-26123. Automatics will require a 2000+ RPM stall. Mild rough idle.
Ford; Modular; 4-Valve; Mustang; Mustang GT; SN95; 4V; Mercury
Serious street effort for supercharged or nitrous applications. Requires custom tuning and lower gears. Automatics will require a 2000+ stall. Mild rough idle.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height6.4
Package Width6.6
Package Length25.6
Weight28.6 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)232
Cam StyleHydraulic roller follower
Grind NumberXE266BH-116
Exh. Duration Advertised (Deg)267
Engine Make/SizeFord 4.6L 4V
Intake Valve Lift With Factory Rocker Arm Ratio (I0.475
Int. Duration @ .050 In. (Deg)230
Basic Operating Rpm Range1,500-6,000
Intake Valve Lift0.475 in (12.065 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)230
Lobe Separation (Deg)116
Rpm Range1500-6000
Advertised Duration265 int./267 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.45
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.475 int./0.450 exh.
QuantitySold as a set of 4
Exhaust Valve Lift0.45 in (11.43 mm)
Advertised Intake Duration265
Intake Duration At 050 Inch Lift230
Exhaust Duration At 050 Inch Lift232
Advertised Exhaust Duration267
Lifter TypeHydraulic Roller
Duration At 050 Inch Lift230 int./232 exh.
Valve Springs RequiredYes
Vendor Part Number106360
Package Qty1
Package TypeEA
