Vehicle Info NeededCOMP CAMSPART NUMBER: 249-106400

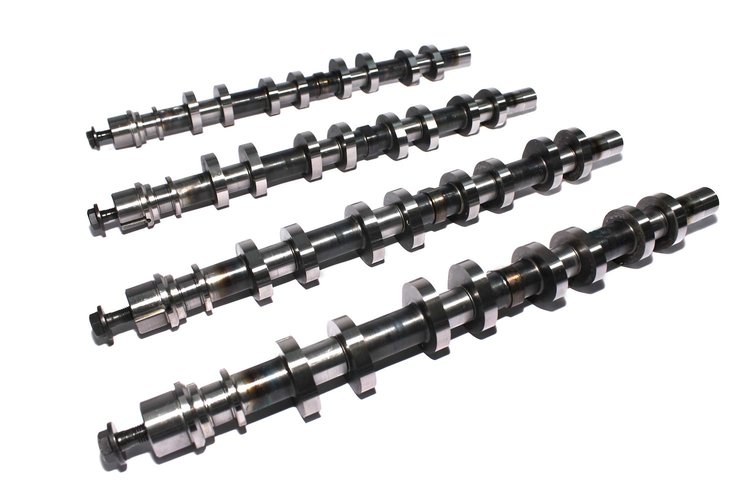

Comp Cams Xtreme Energy Hydraulic Roller Camshafts
$2,13495
Ships on 09/09/2026
Lowest Price GuaranteeFord 4.6L/5.4L DOHC MODULAR 4V 1993-Present
- Xtreme XE-R Series Hydraulic Roller Swinging Follower Camshaft
Lift: .475"/.450"
Duration: 269°/267°
Lobe Separation Angle: 114°
RPM Range: 1800-6200
Hot performance cams for serious horsepower and torque gains. Recommended lower gears, computer modifications, larger throttle body, mass air sensor, injectors and exhaust upgrades. Requires valve spring part number 249-26123. Automatics use a 2200+ RPM stall. Features a rough idle.
Ford; Modular; 4-Valve; Mustang; Mustang GT; SN95; 4V; Mercury
Hot performance cams with serious horsepower and torque gains. Recommended lower gears, requires custom tuning, larger throttle body, mass air, injectors and exhaust upgrades. Automatics use a 2200+ stall. Features a rough idle.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height6.4
Package Width6.5
Package Length25.6
Weight27.85 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)232
Cam StyleHydraulic roller follower
Grind NumberXE270BH-114
Exh. Duration Advertised (Deg)267
Engine Make/SizeFord 4.6L 4V
Intake Valve Lift With Factory Rocker Arm Ratio (I0.475
Int. Duration @ .050 In. (Deg)234
Basic Operating Rpm Range1,800-6,200
Intake Valve Lift0.475 in (12.065 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)269
Lobe Separation (Deg)114
Rpm Range1800-6200
Advertised Duration269 int./267 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.45
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.475 int./0.450 exh.
QuantitySold as a set of 4
Exhaust Valve Lift0.45 in (11.43 mm)
Advertised Intake Duration269
Intake Duration At 050 Inch Lift234
Exhaust Duration At 050 Inch Lift232
Advertised Exhaust Duration267
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift234 int./232 exh.
Valve Springs RequiredYes
Vendor Part Number106400
Package Qty1
Package TypeEA
