Vehicle Info NeededCOMP CAMSPART NUMBER: 249-106500

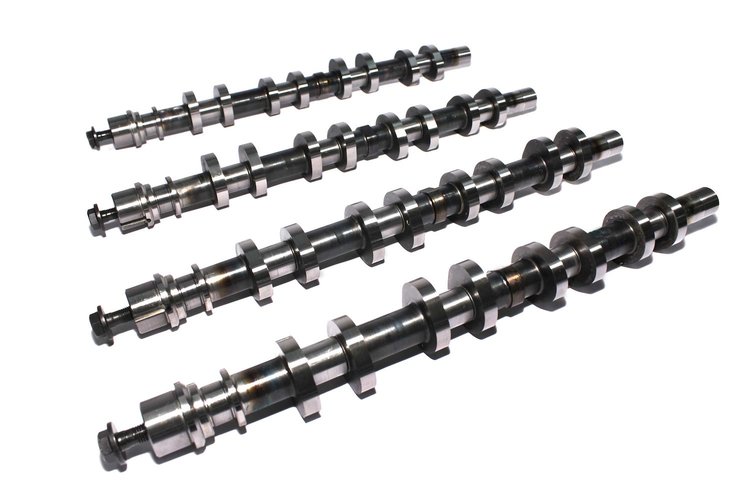

Comp Cams Xtreme Energy Hydraulic Roller Camshafts
$1,70796$2134.95You Save$426.99
Ships on Sep 04, 2026
Lowest Price GuaranteeFord 4.6L/5.4L DOHC MODULAR 4V 1993-Present
- Xtreme XE-R Series Hydraulic Roller Swinging Follower Camshaft
Lift: .475"/.450"
Duration: 277°/275°
Lobe Separation Angle: 114°
RPM Range: 2200-6500
Race or limited street use. Cams require a larger throttle body, mass air sensor, injectors, exhaust upgrades and computer modifications. Requires valve spring part number 249-26123. Automatics need 3000+ RPM stall. Very rough idle.
Ford; Modular; 4-Valve; Mustang; Mustang GT; SN95; 4V; Mercury
Race or limited street use. Cams require a larger throttle body, mass air, injectors, exhaust upgrades and requires custom tuning. Automatics need a 3000+ stall. Very rough idle.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
- Comp Cams Xtreme XE-R series can be used in any street or street/strip application where both throttle response and top-end horsepower is desired. These camshafts are designed to take advantage of the latest improvements in valve train components and the newest developments in camshaft design. Their aggressive lobe design produces better throttle response and top end horsepower than other cams with the same duration @ .050'' lift, while delivering increased engine vacuum. We do not recommend the use of stock valve train components with these camshafts due to the aggressive lobe designs.
Part TypeCamshaft
Product LineComp Cams Xtreme XE-R Series Hydraulic Roller Camshafts
BrandCOMP CAMS
Package Height6.5
Package Width6.6
Package Length25.8
Weight28.3 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)240
Cam StyleHydraulic roller follower
Grind NumberXE278AH-114
Exh. Duration Advertised (Deg)275
Engine Make/SizeFord 4.6L 4V
Intake Valve Lift With Factory Rocker Arm Ratio (I0.475
Int. Duration @ .050 In. (Deg)242
Basic Operating Rpm Range2,200-6,500
Intake Valve Lift0.475 in (12.065 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)277
Lobe Separation (Deg)114
Rpm Range2200-6500
Advertised Duration277 int./275 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.45
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.475 int./0.450 exh.
QuantitySold as a set of 4
Exhaust Valve Lift0.45 in (11.43 mm)
Advertised Intake Duration277
Intake Duration At 050 Inch Lift242
Exhaust Duration At 050 Inch Lift240
Advertised Exhaust Duration275
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift242 int./240 exh.
Valve Springs RequiredYes
Vendor Part Number106500
Package Qty1
Package TypeEA
