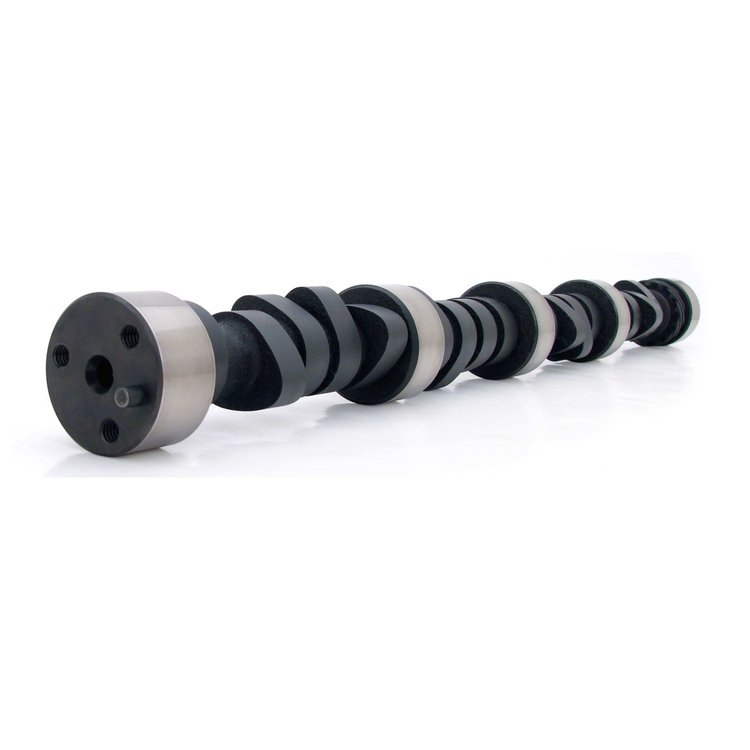

Xtreme Marine Hyd. Flat Tappet Cam
Pro Plasma Nitrided
Chevy Big Block 396-454ci 1965-96
Lift: .570"/.575"
Duration: 288°/304°
Lobe Separation Angle: 112°
RPM Range: 2500-6500

COMP Cams is the only aftermarket valve train company in America that provides a Pro Plasma Nitriding Service in-house. Nitriding is a process by which nitrogen is introduced into iron or steel, causing a material's surface hardness to be increased for improved initial and long-term wear characteristics. It is recognized by metallurgists worldwide as the best way to increase the hardness and lubricity of flat tappet cams to enhance break-in and durability. Don't get blinded by shiny surface finishing or heat-treating - nitriding has been race-proven around the world and documented to deliver superior results.

• Stage 1: Pre-nitrided, unfinished camshaft
• Stage 2: Nitrided camshaft surface approximately .008"-.010" deep; black oxide finish

Chevelle, Camaro, Corvette, Stingray, Silverado, C10, Firebird, Chevrolet, Big Block, Chevy, BBC, 454, 427, 502, 396, Caprice, Malibu, Impala, Nova, Monte Carlo, S10, 572

Jet w/ A or B impeller, 9.5:1+ compression, needs headers, performance use. Nitrided.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
