Vehicle Info NeededCOMP CAMSPART NUMBER: 249-11-310-4

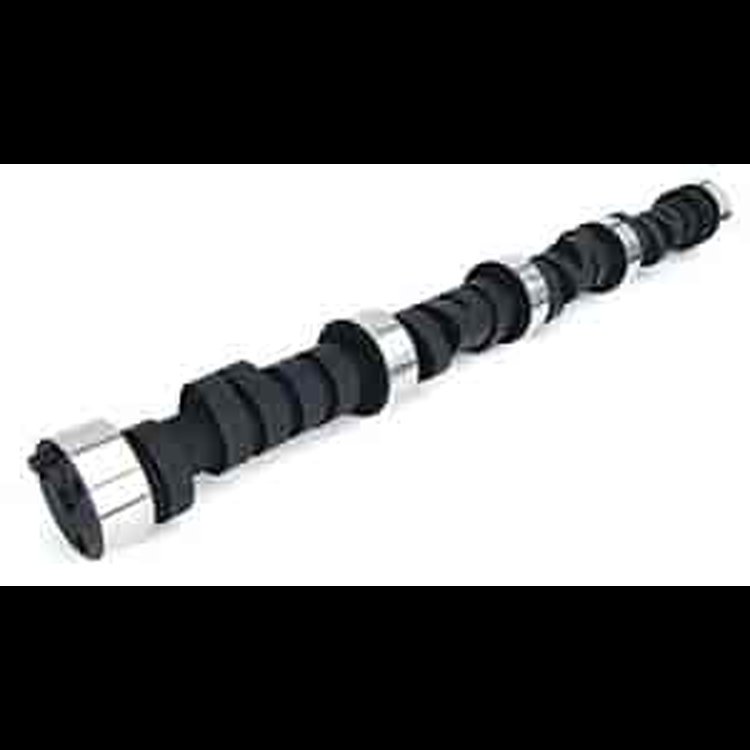

Specialty Hydraulic Flat Tappet Camshafts Lift .532/.520 Duration 270/280 Lobe Angle 112°
$18299
Ships on 09/16/2026
Lowest Price GuaranteeChevrolet Hydraulic Flat Tappet 396-454 V8 1965-1996 W/ 1.7 Rockers
- Specialty Hydraulic Flat Tappet Camshafts
Lift .532/.520
Duration 270/280
Lobe Angle 112°
These specialty cams from COMP Cams are available in many applications and camshaft types. No matter what setup you're running, whether you race, cruise, or pull, COMP Cams has a cam for you.
396; 402; 427; 454; 496; 502; 572; 632; Chevrolet; BBC; Big Block Chevy; Big Block Chevrolet; Chevelle; Corvette; Mark IV; GEN 4; Monte Carlo; Caprice; Sprint; Nova; Camaro; Firebird; L78; Z16; L37; L34; L35; L37; L66; LS3; L34; L35; L37; L66; COPO; ZL1; C10; K10
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width3.0
Package Length24.5
Weight10.87 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)230
Cam StyleHydraulic flat tappet
Grind NumberCB 270AH-12
Exh. Duration Advertised (Deg)280-3
Engine Make/SizeChevy Big Block (396-454)
Intake Valve Lift With Factory Rocker Arm Ratio (I0.532
Int. Duration @ .050 In. (Deg)224
Intake Valve Lift0.532 in (13.513 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)270
Lobe Separation (Deg)112
Rpm Range1400-5800
Advertised Duration270 int./280 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.52
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.532 int./0.520 exh.
Camshaft Gear Attachment3-bolt
QuantitySold individually
Exhaust Valve Lift0.52 in (13.208 mm)
Advertised Intake Duration270
Intake Duration At 050 Inch Lift224
Exhaust Duration At 050 Inch Lift230
Advertised Exhaust Duration280
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift224 int./230 exh.
Valve Springs RequiredYes
Vendor Part Number11-310-4
Package Qty1
Package TypeEA
