Product Discontinued
COMP CAMSPART NUMBER: 249-11-326-4

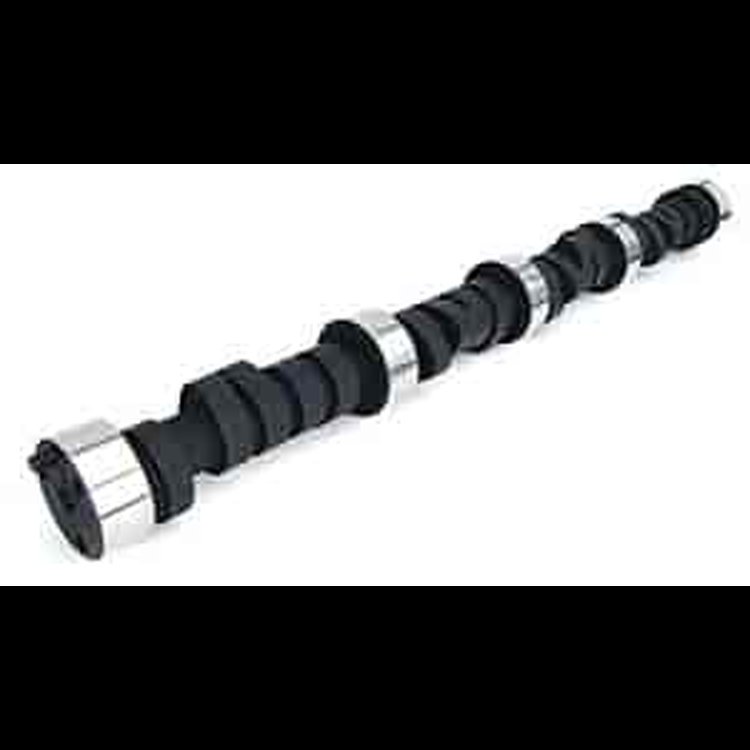

Specialty Hydraulic Flat Tappet Camshaft Lift .567"/.578" Duration 292/296 Lobe Angle 112°
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Chevrolet Hydraulic Flat Tappet 396-454 V8 1965-1996 W/ 1.7 Rockers
- Specialty Hydraulic Flat Tappet Camshaft
- Specialty Camshaft
- 1 Year Limited Warranty
396; 402; 427; 454; 496; 502; 572; 632; Chevrolet; BBC; Big Block Chevy; Big Block Chevrolet; Chevelle; Corvette; Mark IV; GEN 4; Monte Carlo; Caprice; Sprint; Nova; Camaro; Firebird; L78; Z16; L37; L34; L35; L37; L66; LS3; L34; L35; L37; L66; COPO; ZL1; C10; K10
Lift .567"/.578"
Duration 292/296
Lobe Angle 112°
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height3.0
Package Width4.0
Package Length24.5
Weight10.3 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)246
Cam StyleHydraulic flat tappet
Grind NumberCB 292AH-12
Exh. Duration Advertised (Deg)296-3
Engine Make/SizeChevy Big Block (396-454)
Intake Valve Lift With Factory Rocker Arm Ratio (I0.567
Int. Duration @ .050 In. (Deg)244
Intake Valve Lift0.567 in (14.402 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)292-2
Lobe Separation (Deg)112
Rpm Range2500-6200
Advertised Duration292 int./296 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.579
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.567 int./0.579 exh.
Camshaft Gear Attachment3-bolt
QuantitySold individually
Exhaust Valve Lift0.578 in (14.681 mm)
Advertised Intake Duration292
Intake Duration At 050 Inch Lift244
Exhaust Duration At 050 Inch Lift246
Advertised Exhaust Duration296
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift244 int./246 exh.
Valve Springs RequiredYes
Vendor Part Number11-326-4
Package Qty1
Package TypeEA
