Product Discontinued
COMP CAMSPART NUMBER: 249-11-328-4

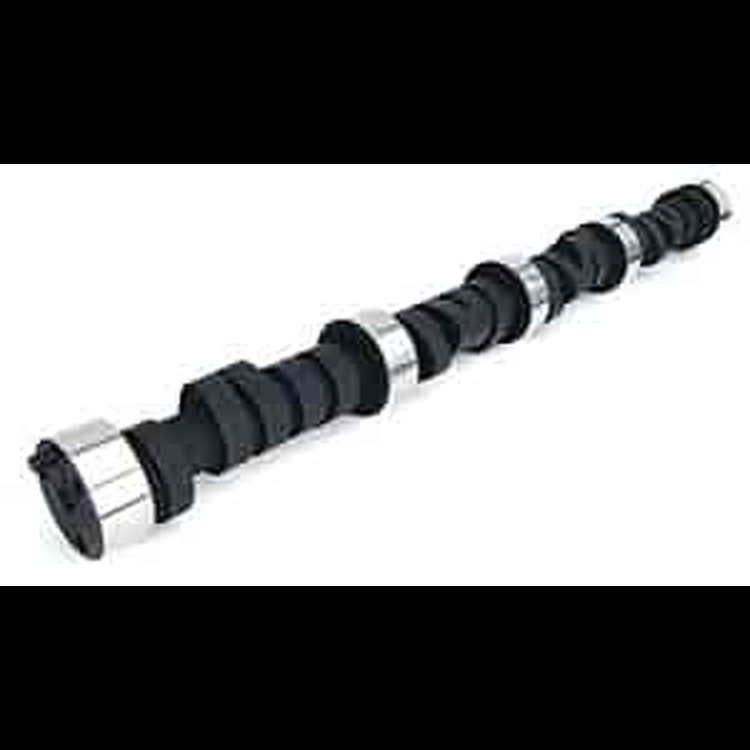

Specialty Hydraulic Flat Tappet Camshaft Lift .578"/.575" Duration 296/305 Lobe Angle 110°
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Chevrolet Hydraulic Flat Tappet 396-454 V8 1965-1996 W/ 1.7 Rockers
- Specialty Hydraulic Flat Tappet Camshaft
- Specialty Camshaft
- 1 Year Limited Warranty
396; 402; 427; 454; 496; 502; 572; 632; Chevrolet; BBC; Big Block Chevy; Big Block Chevrolet; Chevelle; Corvette; Mark IV; GEN 4; Monte Carlo; Caprice; Sprint; Nova; Camaro; Firebird; L78; Z16; L37; L34; L35; L37; L66; LS3; L34; L35; L37; L66; COPO; ZL1; C10; K10
Lift .578"/.575"
Duration 296/305
Lobe Angle 110°
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width2.87
Package Length24.5
Weight12.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)253
Cam StyleHydraulic flat tappet
Grind NumberCB 296AH-10
Exh. Duration Advertised (Deg)305-4
Engine Make/SizeChevy Big Block (396-454)
Intake Valve Lift With Factory Rocker Arm Ratio (I0.578
Int. Duration @ .050 In. (Deg)246
Intake Valve Lift0.578 in (14.681 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)296-3
Lobe Separation (Deg)110
Rpm Range2500-6500
Advertised Duration296 int./305 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.575
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.578 int./0.575 exh.
Camshaft Gear Attachment3-bolt
QuantitySold individually
Exhaust Valve Lift0.575 in (14.605 mm)
Advertised Intake Duration296
Intake Duration At 050 Inch Lift246
Exhaust Duration At 050 Inch Lift253
Advertised Exhaust Duration305
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift246 int./253 exh.
Valve Springs RequiredYes
Vendor Part Number11-328-4
Package Qty1
Package TypeEA
