Product Discontinued
COMP CAMSPART NUMBER: 249-11-402-4

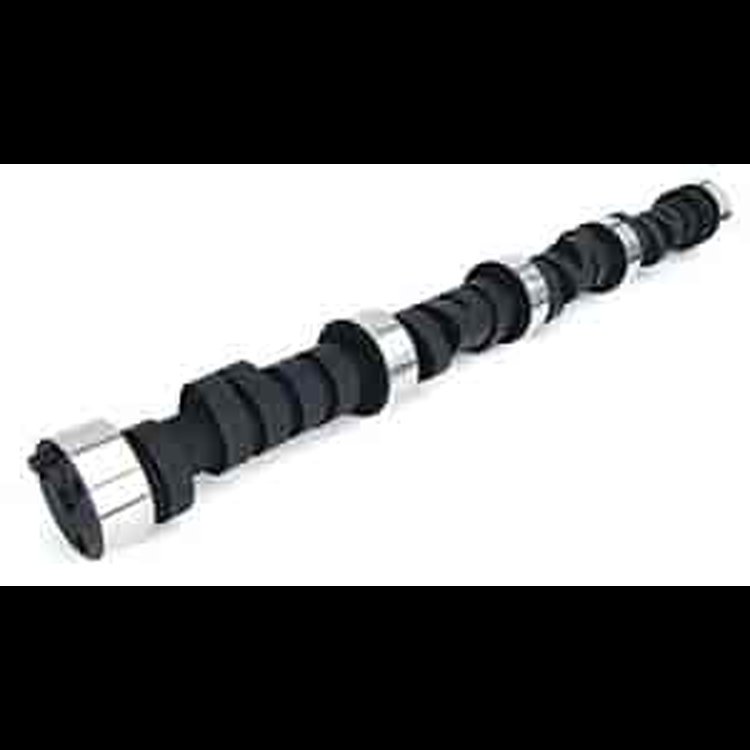

Specialty Hydraulic Flat Tappet Camshaft Lift .525"/.525" Duration 268/276 Lobe Angle 114°
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Chevrolet Hydraulic Flat Tappet 396-454 V8 1965-1996 W/ 1.7 Rockers
- Specialty Hydraulic Flat Tappet Camshaft
- Specialty Camshaft
- 1 Year Limited Warranty
396; 402; 427; 454; 496; 502; 572; 632; Chevrolet; BBC; Big Block Chevy; Big Block Chevrolet; Chevelle; Corvette; Mark IV; GEN 4; Monte Carlo; Caprice; Sprint; Nova; Camaro; Firebird; L78; Z16; L37; L34; L35; L37; L66; LS3; L34; L35; L37; L66; COPO; ZL1; C10; K10
Lift .525"/.525"
Duration 268/276
Lobe Angle 114°
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width2.87
Package Length24.5
Weight10.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)226
Cam StyleHydraulic flat tappet
Grind NumberCB 268AH-14
Exh. Duration Advertised (Deg)276-4
Engine Make/SizeChevy Big Block (396-454)
Intake Valve Lift With Factory Rocker Arm Ratio (I0.525
Int. Duration @ .050 In. (Deg)222
Intake Valve Lift0.525 in (13.335 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)268-4
Lobe Separation (Deg)114
Rpm Range1400-5500
Advertised Duration268 int./276 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.525
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.525 int./0.525 exh.
QuantitySold individually
Exhaust Valve Lift0.525 in (13.335 mm)
Advertised Intake Duration268
Intake Duration At 050 Inch Lift222
Exhaust Duration At 050 Inch Lift226
Advertised Exhaust Duration276
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift222 int./226 exh.
Valve Springs RequiredYes
Vendor Part Number11-402-4
Package Qty1
Package TypeEA
