Vehicle Info NeededCOMP CAMSPART NUMBER: 249-12-250-20

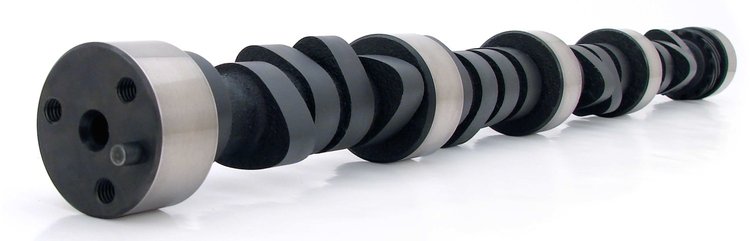

XTREME ENERGY 284H-10 Hydraulic Flat Tappet Camshaft Nitrided Lift .507"/.510" Duration 284°/296° RPM Range 2300-6500
$46895
1 left in stock
Ships Tomorrow
Lowest Price GuaranteeChevy 262-400ci Small Block 1955-98
- XTREME ENERGY 284H-10 Hydraulic Flat Tappet Camshaft Nitrided
Lift .507"/.510"
Duration 284°/296°
RPM Range 2300-6500
HYDRAULIC - Street/strip, 2800+ stall, likes headers and gears, rough idle.
265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10
Street/strip, 2800+ stall, likes headers and gears, rough idle .Nitrided.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.4
Package Width2.5
Package Length23.8
Weight9.03 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)246
Cam StyleHydraulic flat tappet
Grind NumberXE284H
Exh. Duration Advertised (Deg)296
Engine Make/SizeChevy Small Block (262-400)
Intake Valve Lift With Factory Rocker Arm Ratio (I0.507
Int. Duration @ .050 In. (Deg)240
Basic Operating Rpm Range2,300-6,500
Intake Valve Lift0.507 in (12.878 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)284
Lobe Separation (Deg)110
Rpm Range2300-6500
Advertised Duration284 int./296 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.51
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.507 int./0.510 exh.
QuantitySold individually
Exhaust Valve Lift0.51 in (12.954 mm)
Advertised Intake Duration284
Intake Duration At 050 Inch Lift240
Exhaust Duration At 050 Inch Lift246
Advertised Exhaust Duration296
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift240 int./246 exh.
Valve Springs RequiredYes
Vendor Part Number12-250-20
Package Qty1
Package TypeEA
