Product Discontinued
COMP CAMSPART NUMBER: 249-12-360-4

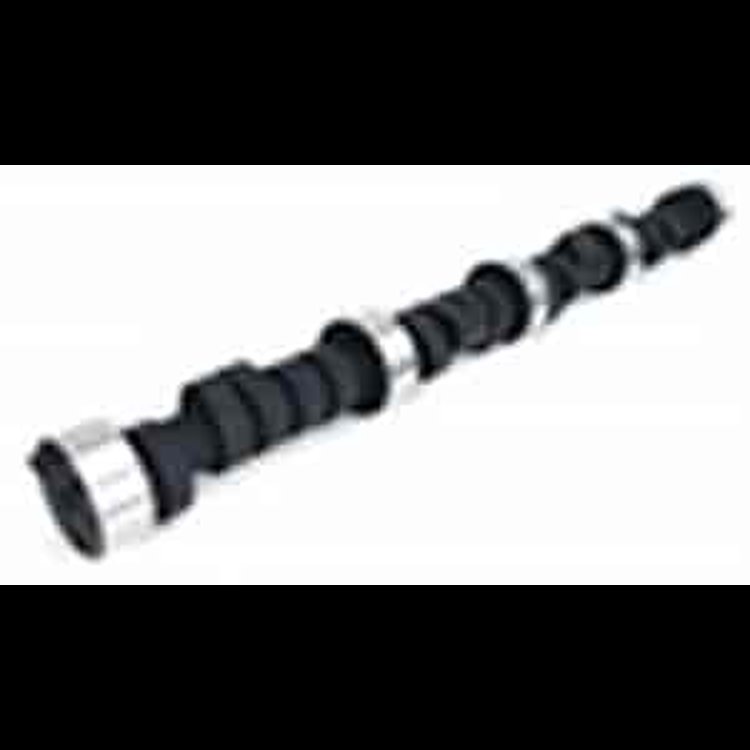

COMP Cams Specialty CS 320AH-8 Hydraulic Flat Camshaft Lift .551"/.551" Duration 320/328 Lobe Angle 108°
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Chevy Small Block
- COMP Cams Specialty CS 320AH-8 Hydraulic Flat Camshaft
- Specialty Camshaft
- 1 Year Limited Warranty
SBC; Chevrolet; Chevy Small Block; Small Block Chevrolet; 265; 283; 307; 302; 327; 350; 305; 262; 400; 383; 427; 406; 355; 267; L46; L48; L65; LM1; ZQ3; LT1; L82; L81; LS9; LT-9; L83; L98; L05; L31; LG3; LG4; LU5; L69; LE9; LB9; L03; L30; Chevelle; Camaro; Swap; Corvette; Bel Air; Z28; Z2/8; Duntov; Nova; Monaro; Firebird; Trans-Am; Pontac; C10; C20; K10; Blazer; S10; Monza; Ventura; Monte Carlo; Malibu; El Camino; Caprice; Vortec; SS
Lift .551"/.551"
Duration 320/328
Lobe Angle 108°
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width3.0
Package Length24.5
Weight8.53 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)276
Cam StyleHydraulic flat tappet
Grind NumberCS 320AH-8
Exh. Duration Advertised (Deg)328
Engine Make/SizeChevy Small Block (262-400)
Intake Valve Lift With Factory Rocker Arm Ratio (I0.551
Int. Duration @ .050 In. (Deg)270
Intake Valve Lift0.551 in (13.995 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)320
Lobe Separation (Deg)108
Rpm Range3500-7000
Advertised Duration320 int./328 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.551
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.551 int./0.551 exh.
QuantitySold individually
Exhaust Valve Lift0.551 in (13.995 mm)
Advertised Intake Duration320
Intake Duration At 050 Inch Lift270
Exhaust Duration At 050 Inch Lift276
Advertised Exhaust Duration328
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift270 int./276 exh.
Valve Springs RequiredYes
Vendor Part Number12-360-4
Package Qty1
Package TypeEA
