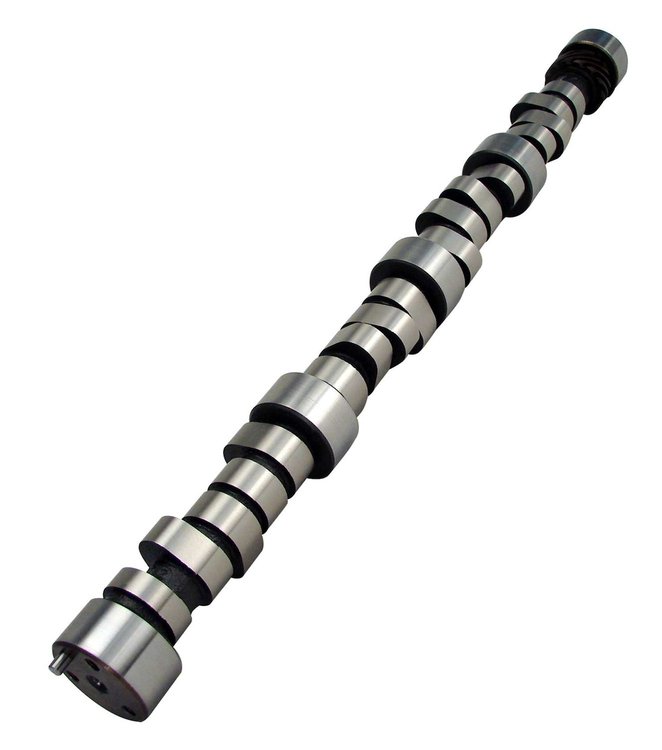

XFI Hydraulic Roller Camshaft Small Block Chevy 262-400ci 1955-98 Lift: .560"/.555" With 1.6 Rockers

Name: XFI Hydraulic Roller Camshaft Small Block Chevy 262-400ci 1955-98 Lift: .560"/.555" With 1.6 Rockers
Brand: COMP CAMS
SKU: 249-12-465-8
Price: 522.95 USD
Availability: InStock

^$522⁹⁵

Ships on 09/16/2026

Lowest Price Guarantee

Chevy 262-400ci 1955-98
Retro-Fit Hydraulic Roller Camshafts

Lift: .560"/.555" With 1.6 Rockers
Duration: 260°/270°
Lobe Separation Angle: 113°

RPM Range:1200-5200

Good low end & mid-range cam. Exhaust upgrade preferred. Smooth torque curve.
Operating Range: 1200-5200 RPM
Duration Advertised: 260° Intake / 270° Exhaust
Duration @ .050' Lift: 210° Intake / 218° Exhaust
Valve Lift w/1.6 Rockers: .560' Intake / .555' Exhaust
Lobe Separation Angle: 113°
265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10

Good low end and mid-range cam. Exhaust upgrade preferred. Smooth torque curve.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft
BrandCOMP CAMS
Package Height2.5
Package Width3.0
Package Length24.4
Weight8.8 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)218
Cam StyleHydraulic roller tappet
Grind Number260XFI HR13
Exh. Duration Advertised (Deg)270
Engine Make/SizeChevy Small Block (262-400)
Intake Valve Lift With Factory Rocker Arm Ratio (I0.56
Int. Duration @ .050 In. (Deg)210
Basic Operating Rpm Range1,200-5,200
Intake Valve Lift0.56 in (14.224 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)260
Lobe Separation (Deg)113
Rpm Range1200-5200
Advertised Duration260 int./270 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.555
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.560 int./0.555 exh.
QuantitySold individually
Exhaust Valve Lift0.555 in (14.097 mm)
Advertised Intake Duration260
Intake Duration At 050 Inch Lift210
Exhaust Duration At 050 Inch Lift218
Advertised Exhaust Duration270
Lifter TypeHydraulic Roller Retrofit
Part FitmentSemi Universal
Duration At 050 Inch Lift210 int./218 exh.
Valve Springs RequiredYes
Vendor Part Number12-465-8
Package Qty1
Package TypeEA
