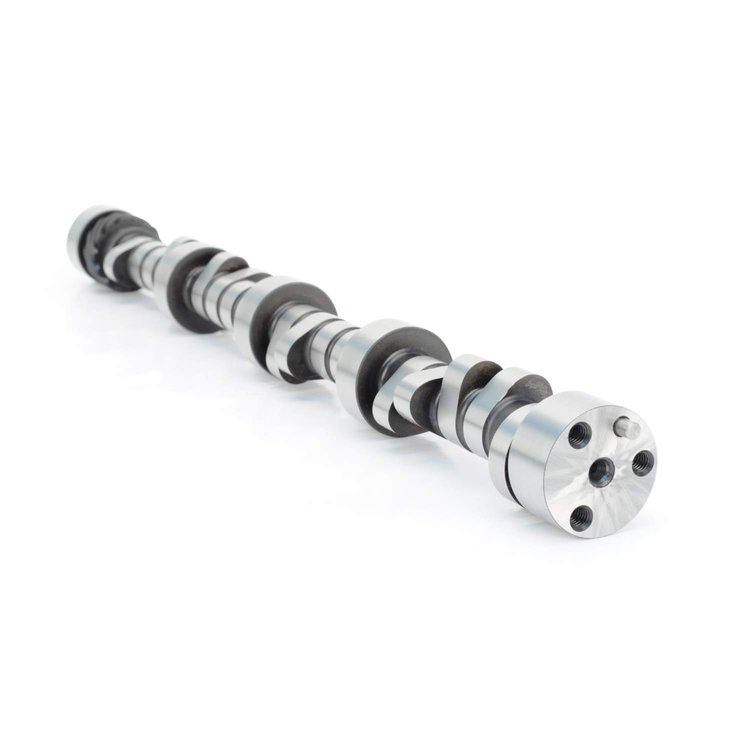

Comp Cams 4-Pattern Camshafts

Name: Comp Cams 4-Pattern Camshafts
Brand: COMP CAMS
SKU: 249-12-473-44
Price: 682.95 USD
Availability: InStock

^$682⁹⁵

Ships on 09/04/2026

Lowest Price Guarantee

Small Block Chevy 262-400ci 1955-98

.900" Base Circle Retro-Fit

.637"/.635"

.621"/.621"

109.5°/108.5°

2400-6700

Intake Duration: 289°/287°
Exhaust Duration: 301°/299°
Best choice for street 383 c.i. stroker engines with good cylinder heads. Very wide power range. 2600+ stall.
265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10

Best choice for street 383 stroker engines with good cylinder heads. Very wide power range. 2600+ Stall.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft
BrandCOMP CAMS
Package Height5.0
Package Width5.5
Package Length27.0
Weight10.05 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)246
Cam StyleHydraulic roller tappet
Grind Number287QS9
Exh. Duration Advertised (Deg)301
Engine Make/SizeChevy Small Block (262-400)
Intake Valve Lift With Factory Rocker Arm Ratio (I0.637/0.635
Int. Duration @ .050 In. (Deg)236
Basic Operating Rpm Range2,400-6,700
Intake Valve Lift0.637 in (16.18 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)289
Lobe Separation (Deg)109.5/108.5
Rpm Range2400-6700
Advertised Duration289 int./301 exh., 287 int./299 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.621/0.621
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.637 int./0.621 exh., 0.635 int./0.621 exh.
Camshaft Gear Attachment3-bolt
QuantitySold individually
Exhaust Valve Lift0.621 in (15.773 mm)
Advertised Intake Duration289/287
Intake Duration At 050 Inch Lift236/234
Exhaust Duration At 050 Inch Lift246/244
Advertised Exhaust Duration301/299
Lifter TypeHydraulic Roller Retrofit
Part FitmentSemi Universal
Duration At 050 Inch Lift236 int./246 exh., 234 int./244 exh.
Valve Springs RequiredYes
Vendor Part Number12-473-44
Package Qty1
Package TypeEA
