Vehicle Info NeededCOMP CAMSPART NUMBER: 249-12-654-20

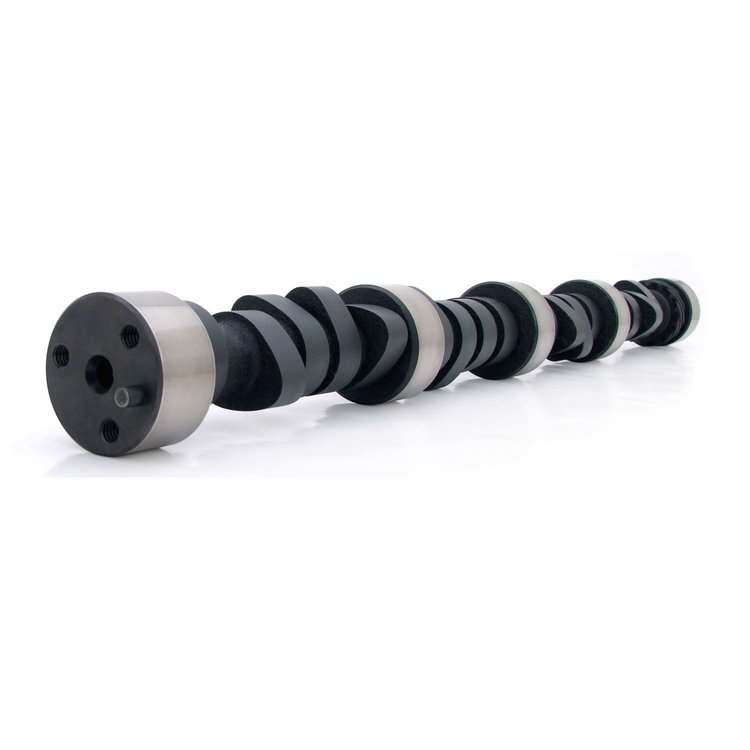

Comp Cams Oval Track Camshafts
$40695
Ships on 10/14/2026
Lowest Price GuaranteeSmall Block Chevrolet 262-400ci 1955-1998Mechanical Flat Tappet - (Xtreme Oval)
- Oval Track Mechanical Flat Tappet Camshaft
Chevrolet 262-400ci 1955-1998
Nitrided
Lift: .549"/.537"
Duration: 286°/292°
Lobe Separation Angle: 108°
RPM Range: 3200-7200
Late Model Stock. 1/4-3/8 track. 358 with limited intake & carb.
265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10
Late Model Stock. 1/4-3/8 track. 358 with limited intake and carb.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width3.0
Package Length24.5
Weight8.84 PG
Part CategoryPerformance Parts
UsageStrip
Intake Valve Lift0.549 in (13.945 mm)
Int. Duration Advertised (Deg)286
Exh. Duration @ .050 In. (Deg)258
Rpm Range3200-7200
Lifter TypeMechanical Flat Tappet
Exh. Duration Advertised (Deg)292
Part FitmentSemi Universal
Engine Make/SizeChevy Small Block (262-400)
Int. Duration @ .050 In. (Deg)256
Exhaust Valve Lift0.537 in (13.64 mm)
Vendor Part Number12-654-20
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
