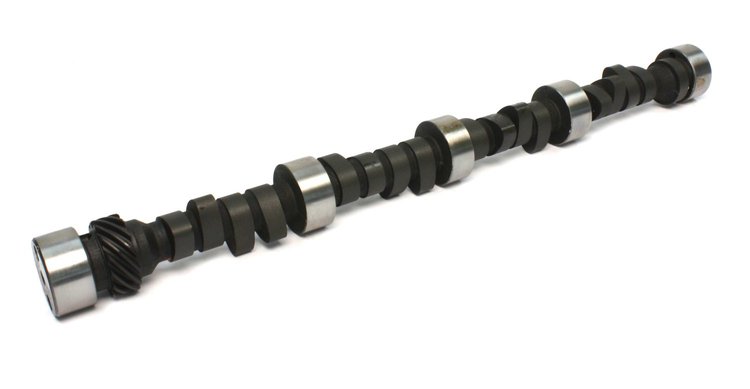

Xtreme Energy 274H Hydraulic Flat Tappet Camshaft Only Lift .490"/.490" Duration 274°/286° RPM Range 2300-6500
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-12-660-47

Xtreme Energy 274H Hydraulic Flat Tappet Camshaft Only Lift .490"/.490" Duration 274°/286° RPM Range 2300-6500

$32695
ShippingShips on 09/15/2026
Lowest PriceLowest Price Guarantee

Chevy 262-400ci Small Block 1958-98
  • 4 & 7 Swap Firing Order
    • Xtreme Energy 274H Hydraulic Flat Tappet Camshaft Only
      Lift .490"/.490"
      Duration 274°/286°
      RPM Range 2300-6500

      COMP Cams Xtreme Energy camshafts are built to take advantage of the latest cam technology, to provide maximum performance. Whether your use is off-roading, towing, or street performance, there is an Xtreme Energy cam available for you. By using an aggressive lobe profile, these cams provide better throttle response and more top-end horsepower than equivalent cams from other manufacturers, while delivering increased engine vacuum.

      265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10


      Very strong mid-range torque and throttle response, 2500+ stall.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    Part TypeCamshaft
    BrandCOMP CAMS
    Package Height2.8
    Package Width3.0
    Package Length24.2
    Weight8.9 PG
    Part CategoryPerformance Parts
    UsageStreet/Performance
    Intake Valve Lift0.49 in (12.446 mm)
    Int. Duration Advertised (Deg)274
    Exh. Duration @ .050 In. (Deg)236
    Cam StyleHydraulic flat tappet
    Lifter TypeMechanical Flat Tappet
    Rpm Range1800-6000
    Exh. Duration Advertised (Deg)286
    Part FitmentSemi Universal
    Engine Make/SizeChevy Small Block (262-400)
    Int. Duration @ .050 In. (Deg)230
    Exhaust Valve Lift0.49 in (12.446 mm)
    Vendor Part Number12-660-47
    Package Qty1
    Package TypeEA
