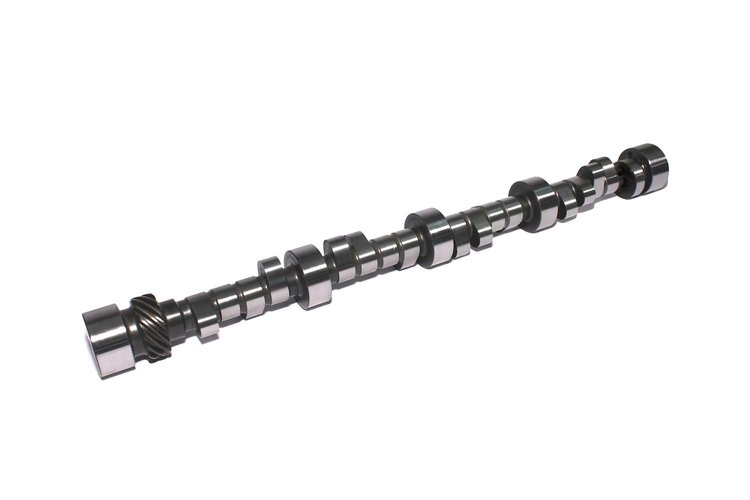

Drag Race Mechanical Roller Camshaft
Lift: .660''/.630''
Duration: 313/322
RPM Range: 4500-7500


*Note: In order to use these camshafts in 1955-57 265ci blocks, it is necessary to machine a small groove in the rear main journal of the cam to allow oil flow to the top of the engine.

**Note: Requires upgraded gear, thrust button & wear plate.

350-400ci, 5000 stall converter, 11.5:1 compression, ported heads.

Operating Range:	4500-7500 RPM
Duration Advertised:	313° Intake / 322° Exhaust
Duration @ .050' Lift:	276° Intake / 284° Exhaust
Valve Lift w/1.5 Rockers:	.660' Intake / .630' Exhaust
Valve Setting:	.026' Intake / .028' Exhaust
Lobe Separation Angle:	106°

265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10


350-400, 5000+ stall, 11.5:1+ compression, ported heads.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
