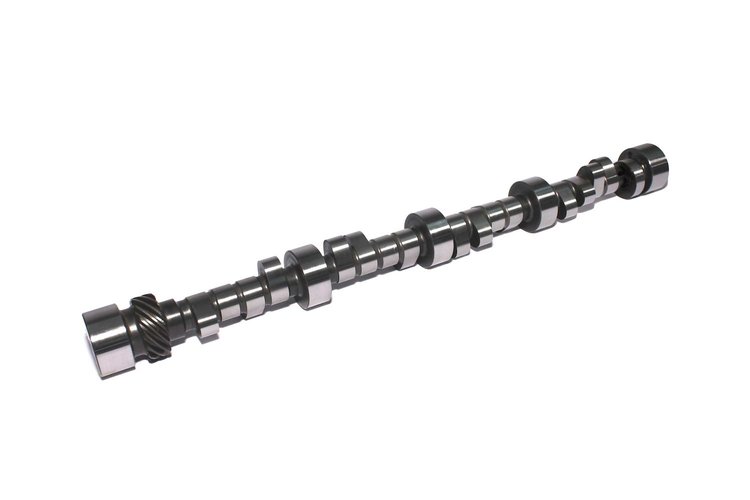

Comp Cams Oval Track Camshafts
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-12-924-9

Comp Cams Oval Track Camshafts

$55895
1 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Small Block Chevrolet 262-400ci 1955-1998
  • Mechanical Roller
  • (.900" Base Circle)
      • Oval Track Mechanical Roller Camshaft
      Chevrolet 262-400ci 1955-1998
      Lift: .660"/.630"
      Duration: 296°/304°
      Lobe Separation Angle: 104°
      RPM Range: 4200-7000

      .900" base circle, Good Late Model cam w/388-406 on short track.

      265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10


      Good Late Model cam w/ 388-406c.i. on short track.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    Part TypeCamshaft
    BrandCOMP CAMS
    Package Height2.75
    Package Width2.87
    Package Length24.5
    Weight8.1 PG
    Part CategoryPerformance Parts
    Exh. Duration @ .050 In. (Deg)267
    Cam StyleMechanical roller tappet
    Grind Number296BR-4
    Exh. Duration Advertised (Deg)304
    Engine Make/SizeChevy Small Block (262-400)
    Intake Valve Lift With Factory Rocker Arm Ratio (I0.63
    Int. Duration @ .050 In. (Deg)260
    Basic Operating Rpm Range4,200-7,000
    Intake Valve Lash0.02 in (0.508 mm)
    Intake Valve Lift0.63 in (16.002 mm)
    Computer-Controlled CompatibleNo
    Int. Duration Advertised (Deg)296
    Lobe Separation (Deg)104
    Rpm Range4200-7000
    Advertised Duration296 int./304 exh.
    Exhaust Valve Lift With Factory Rocker Arm Ratio (0.63
    UsageStrip
    Valve Lift With Factory Rocker Arm Ratio0.630 int./0.630 exh.
    QuantitySold individually
    Exhaust Valve Lash0.022 in (0.559 mm)
    Exhaust Valve Lift0.63 in (16.002 mm)
    Advertised Intake Duration296
    Intake Duration At 050 Inch Lift260
    Exhaust Duration At 050 Inch Lift267
    Advertised Exhaust Duration304
    Lifter TypeMechanical Roller
    Part FitmentSemi Universal
    Duration At 050 Inch Lift260 int./267 exh.
    Valve Springs RequiredYes
    Vendor Part Number12-924-9
    Package Qty1
    Package TypeEA
