Vehicle Info NeededCOMP CAMSPART NUMBER: 249-127050

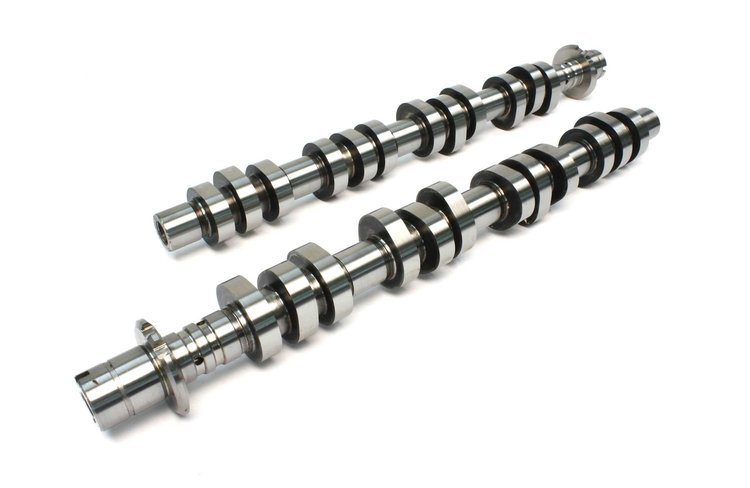

Xtreme Fuel Injection NSR Camshaft Set Ford 4.6L/5.4L Modular 3V (Stage 1) Lift: .450"/.450"
$1,08095
Ships on 09/15/2026
Lowest Price GuaranteeXtreme Fuel Injection NSR Cam Sets(No Springs Required) Hydraulic Roller Swinging Follower Camshafts
- Xtreme Fuel Injection NSR Camshaft Set
- Lift: .450"/.450"
- Duration: 253°/270°
- Lobe Separation Angle: 114°
- RPM Range: 750-6200
Great upgrade for stock engine. Solid power gains above 4700 rpm, compatible with stock springs. Works with tuners, no computer re-tuning required.Ford; Modular; 3-Valve; Mustang; Mustang GT; SN95; 3V; Mercury
Great upgrade for stock engine. Solid power gains above 4700 RPM, compatible with stock springs. Works with stock tune.
Ford 4.6L/5.4L Modular 3V (Stage 1)
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height3.4
Package Width6.0
Package Length25.6
Weight15.25 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)227
Cam StyleHydraulic roller follower
Grind NumberXE253LH-14
Exh. Duration Advertised (Deg)270
Engine Make/SizeFord 4.6L 3V
Intake Valve Lift With Factory Rocker Arm Ratio (I0.45
Int. Duration @ .050 In. (Deg)214
Basic Operating Rpm Range750-6,200
Intake Valve Lift0.451 in (11.455 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)253
Lobe Separation (Deg)114
Rpm Range750-6200
Advertised Duration253 int./270 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.45
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.450 int./0.450 exh.
QuantitySold as a pair
Exhaust Valve Lift0.45 in (11.43 mm)
Advertised Intake Duration253
Intake Duration At 050 Inch Lift214
Exhaust Duration At 050 Inch Lift227
Advertised Exhaust Duration270
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift214 int./227 exh.
Valve Springs RequiredNo
Vendor Part Number127050
Package Qty1
Package TypeEA
