Vehicle Info NeededCOMP CAMSPART NUMBER: 249-127200

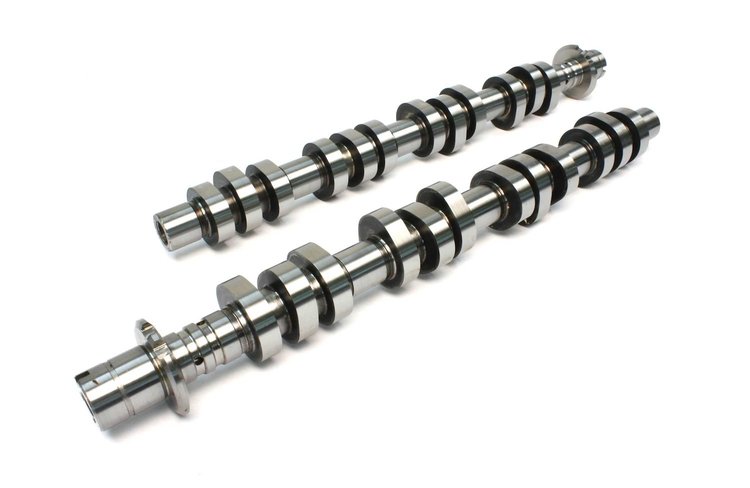

Xtreme Fuel Injection NSR Camshaft Set Ford 4.6L/5.4L Modular 3V (Stage 2) Lift: .450"/.450"
$1,08095
Ships on Sep 04, 2026
Lowest Price GuaranteeXtreme Fuel Injection NSR Cam Sets(No Springs Required) Hydraulic Roller Swinging Follower Camshafts
- Xtreme Fuel Injection NSR Camshaft Set
- Lift: .450"/.450"
- Duration: 261°/278°
- Lobe Separation Angle: 115.5°
- RPM Range: 750-6400
Solid power gains above 4900 rpm, compatible with stock springs. Works with tuners, no computer re-tuning required. Best with 3.73 gears & 2500 stall. Great idle.Ford; Modular; 3-Valve; Mustang; Mustang GT; SN95; 3V; Mercury
Solid power gains above 4900 RPM, compatible with stock springs. Works with stock tune. Best with 3.73 gear & 2500 stall. Great idle.
Ford 4.6L/5.4L Modular 3V (Stage 2)
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height3.3
Package Width5.9
Package Length25.6
Weight15.35 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)235
Cam StyleHydraulic roller follower
Grind NumberXE261LH-15.5
Exh. Duration Advertised (Deg)278
Engine Make/SizeFord 4.6L 3V
Intake Valve Lift With Factory Rocker Arm Ratio (I0.45
Int. Duration @ .050 In. (Deg)222
Basic Operating Rpm Range750-6,400
Intake Valve Lift0.451 in (11.455 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)261
Lobe Separation (Deg)115.5
Rpm Range750-6400
Advertised Duration261 int./278 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.45
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.450 int./0.450 exh.
QuantitySold as a pair
Exhaust Valve Lift0.45 in (11.43 mm)
Advertised Intake Duration261
Intake Duration At 050 Inch Lift222
Exhaust Duration At 050 Inch Lift235
Advertised Exhaust Duration278
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift222 int./235 exh.
Valve Springs RequiredNo
Vendor Part Number127200
Package Qty1
Package TypeEA
