Vehicle Info NeededCOMP CAMSPART NUMBER: 249-127205

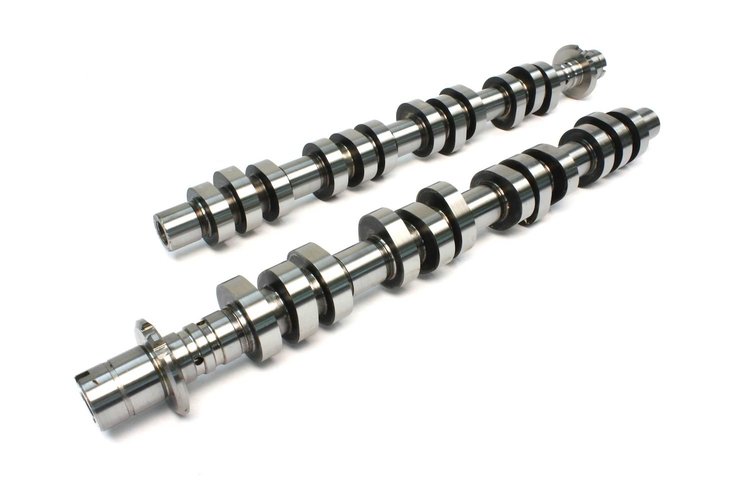

Xtreme Fuel Injection NSR Camshaft Set Ford 4.6L/5.4L Modular 3V (Stage 2) Lift: .450"/.450"
$1,08095
Ships on Sep 03, 2026
Lowest Price GuaranteeXtreme Fuel Injection NSR Cam Sets (No Springs Required) Blower Hydraulic Roller Swinging Follower Camshafts
- Xtreme Fuel Injection NSR Camshaft Set
- Lift: .450"/.450"
- Duration: 261°/282°
- Lobe Separation Angle: 116.5°
- RPM Range: 750-6400
Mid to upper range cam for bolt-on blowers running higher boost psi. Major power gains above 4900 rpm, compatible with stock springs. Best with 3.73+ gears & 2500 stall. Great idle.Ford; Modular; 3-Valve; Mustang; Mustang GT; SN95; 3V; Mercury
Mid to upper range cam for bolt-on blowers running higher boost psi. Major power gains above 4900 RPM, compatible with stock springs. Best with 3.73+ gears & 2500 stall. Great idle. Works with stock tune.
Ford 4.6L/5.4L Modular 3V (Stage 2)
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.87
Package Width5.62
Package Length24.62
Weight16.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)239
Cam StyleHydraulic roller follower
Grind NumberXE261LH-16.5
Exh. Duration Advertised (Deg)282
Engine Make/SizeFord 4.6L 3V
Intake Valve Lift With Factory Rocker Arm Ratio (I0.45
Int. Duration @ .050 In. (Deg)222
Basic Operating Rpm Range750-6,400
Intake Valve Lift0.45 in (11.43 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)261
Lobe Separation (Deg)116.5
Rpm Range750-6400
Advertised Duration261 int./282 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.45
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.450 int./0.450 exh.
QuantitySold as a pair
Exhaust Valve Lift0.45 in (11.43 mm)
Advertised Intake Duration261
Intake Duration At 050 Inch Lift222
Exhaust Duration At 050 Inch Lift239
Advertised Exhaust Duration282
Lifter TypeHydraulic Roller
Duration At 050 Inch Lift222 int./239 exh.
Valve Springs RequiredNo
Vendor Part Number127205
Package Qty1
Package TypeEA
