Vehicle Info NeededCOMP CAMSPART NUMBER: 249-127350

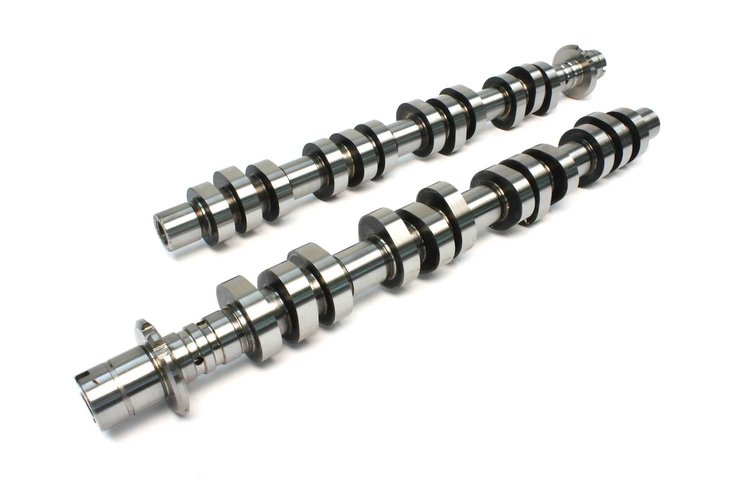

XFI VSR Ford 4.6L/5.4L Modular 3V Camshafts 2004-Present Lift: .490"/.485"
$1,08095
Ships on 09/15/2026
Lowest Price GuaranteeXFI VSR Ford 4.6L/5.4L Modular 3V CamsBlower Grind
- XFI VSR Ford 4.6L/5.4L Modular 3V Camshafts
- Lift: .490"/.485"
- Duration: 261°/282°
- Lobe Separation Angle: 116.5°
- RPM Range: 950-6400
Blower Grind, Stage 2. Mid to upper range cam for bolt-on blowers with high boost. Noticeable idle, solid power gains above 4900 rpm, requires spring upgrade. Best with 3000+ stall.Ford; Modular; 3-Valve; Mustang; Mustang GT; SN95; 3V; Mercury
Mid to upper range cam for bolt-on blowers with high boost. Noticeable idle, solid power gains above 4900 RPM, requires spring upgrade. Best with 3000+ stall. Requires custom tuning.
2004-Present
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height3.3
Package Width6.0
Package Length25.6
Weight15.4 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)239
Cam StyleHydraulic roller follower
Grind NumberXE261H-16.5
Exh. Duration Advertised (Deg)282
Engine Make/SizeFord 4.6L 3V
Intake Valve Lift With Factory Rocker Arm Ratio (I0.49
Int. Duration @ .050 In. (Deg)222
Basic Operating Rpm Range950-6,400
Intake Valve Lift0.491 in (12.471 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)261
Lobe Separation (Deg)116.5
Rpm Range950-6400
Advertised Duration261 int./282 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.485
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.490 int./0.485 exh.
QuantitySold as a pair
Exhaust Valve Lift0.485 in (12.319 mm)
Advertised Intake Duration261
Intake Duration At 050 Inch Lift222
Exhaust Duration At 050 Inch Lift239
Advertised Exhaust Duration282
Lifter TypeHydraulic Roller
Duration At 050 Inch Lift222 int./239 exh.
Valve Springs RequiredYes
Vendor Part Number127350
Package Qty1
Package TypeEA
