Vehicle Info NeededCOMP CAMSPART NUMBER: 249-127400

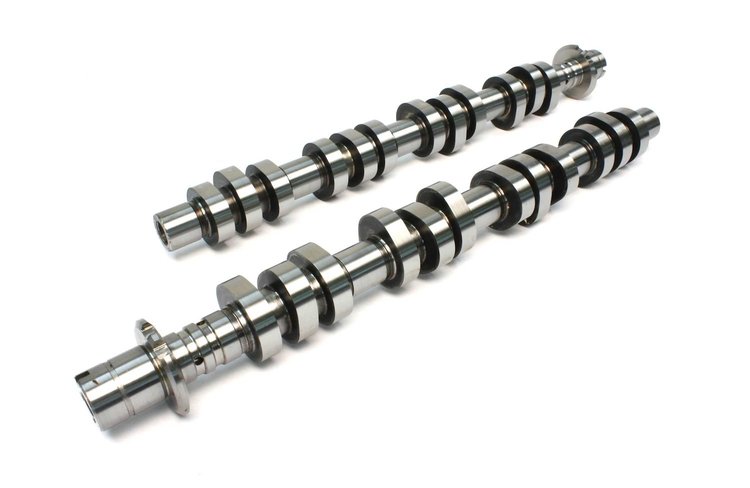

XFI SPR Camshafts Ford 4.6L/5.4L Modular 3V
$1,08095
Ships Tomorrow
Lowest Price GuaranteeFord 4.6L/5.4L Modular 3V, 2004-Present
- XFI SPR Camshafts
- Ford 4.6L/5.4L Modular 3V
- Lift: .523"/.538"
- Duration: 256°/267°
- Lobe Separation Angle: 112°
- RPM Range: 900-6700
Powerful cam with great idle, excellent upgrade over stock. Good torque down low with powerful mid-range. Solid power gains above 4500 RPM, requires spring and phaser upgrade. Custom tuning required. Stock gears & converter OK.Ford; Modular; 3-Valve; Mustang; Mustang GT; SN95; 3V; Mercury
Powerful cam with great idle, excellent upgrade over stock. Good torque down low with powerful mid-range. Solid power gains above 4500 RPM, requires spring and phaser upgrade. Requires custom tuning. Stock gears and converter ok.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.87
Package Width5.62
Package Length24.62
Weight16.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)228
Cam StyleHydraulic roller follower
Grind NumberXE256PH-12
Exh. Duration Advertised (Deg)267
Engine Make/SizeFord 4.6L 3V
Intake Valve Lift With Factory Rocker Arm Ratio (I0.523
Int. Duration @ .050 In. (Deg)221
Basic Operating Rpm Range900-6,700
Intake Valve Lift0.523 in (13.284 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)256
Lobe Separation (Deg)112
Rpm Range900-6700
Advertised Duration256 int./267 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.538
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.523 int./0.538 exh.
QuantitySold as a pair
Exhaust Valve Lift0.538 in (13.665 mm)
Advertised Intake Duration256
Intake Duration At 050 Inch Lift221
Exhaust Duration At 050 Inch Lift228
Advertised Exhaust Duration267
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift221 int./228 exh.
Valve Springs RequiredYes
Vendor Part Number127400
Package Qty1
Package TypeEA
