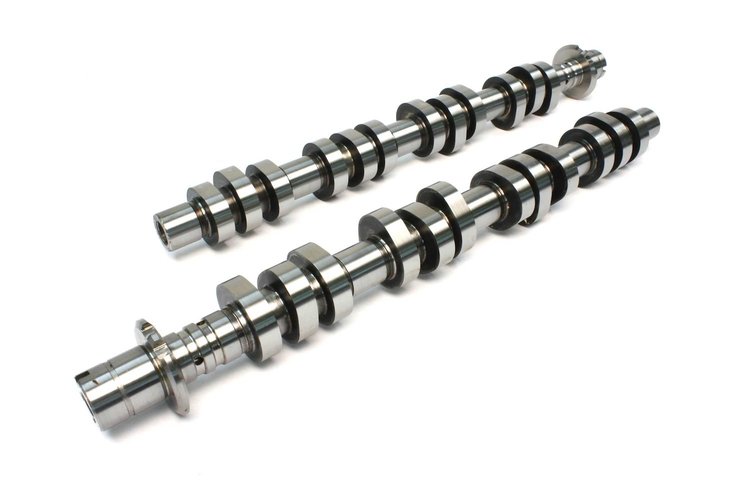

XFI SPR Camshafts Ford 4.6L/5.4L Modular 3V

Vehicle Info Needed

COMP CAMSPART NUMBER: 249-127600

XFI SPR Camshafts Ford 4.6L/5.4L Modular 3V

Name: XFI SPR Camshafts Ford 4.6L/5.4L Modular 3V
Brand: COMP CAMS
SKU: 249-127600
Price: 1080.95 USD
Availability: InStock

^$1,080⁹⁵

Ships on Sep 11, 2026

Lowest Price Guarantee

Ford 4.6L/5.4L Modular 3V, 2004-Present

Ford 4.6L/5.4L Modular 3V
Lift: .547"/.556"
Duration: 272°/283°
Lobe Separation Angle: 112°
RPM Range: 1000-7100

Max effort street/strip cam with very rough idle, needs ported heads. Good mid-range with incredible power up to 7000+ RPM. Solid power gains above 4900 RPM, requires spring & phaser upgrade. Custom tuning required. 4.10+ gears and 3200+ stall.
Ford; Modular; 3-Valve; Mustang; Mustang GT; SN95; 3V; Mercury

Max effort street/strip cam with very rough idle, needs ported heads. Good midrange with incredible power up to 7000+ RPM. Solid power gains above 4900 RPM. Spring/phaser upgrade and custom tuning required. 4.10+ gears and 3200+ stall.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Comp Cams XFI SPR ("Springs and Phaser Mods Required") Camshafts are the best way to achieve the most horsepower and torque gains possible on the popular Ford 4.6L/5.4L Modular 3 Valve engines. This group of cam sets are available for naturally aspirated & supercharged engines; each version is offered in three performance levels. Designed to work with a modified Ford variable cam timing (VCT) system, these cams are direct replacement components. Working with Comp Cams Phaser Limiter Kit, XFI SPR Camshafts optimize both low and high RPM performance. As noted by the Comp Cams engineering staff during dyno testing, these camshafts provided the biggest power and torque improvements of any cam series they've ever tested in the Ford Modular 3 Valve engine.

Features:

Two camshaft profiles engineered to make more horsepower and torque
Improved throttle response and increased engine vacuum
Designed for use with component technology, such as 249-26120 Beehive valve springs
The perfect combination for any Ford engine builder contemplating increased stroke displacement

Part TypeCamshaft

Product LineComp Cams XFI SPR Camshafts

BrandCOMP CAMS

Package Height3.2

Package Width6.4

Package Length25.6

Weight15.76 PG

Part CategoryPerformance Parts

Exh. Duration @ .050 In. (Deg)244

Cam StyleHydraulic roller follower

Grind NumberXE272PH-12

Exh. Duration Advertised (Deg)283

Engine Make/SizeFord 4.6L 3V

Intake Valve Lift With Factory Rocker Arm Ratio (I0.547

Int. Duration @ .050 In. (Deg)237

Basic Operating Rpm Range1,000-7,100

Intake Valve Lift0.547 in (13.894 mm)

Computer-Controlled CompatibleYes

Int. Duration Advertised (Deg)272

Lobe Separation (Deg)112

Rpm Range1000-7100

Advertised Duration272 int./283 exh.

Exhaust Valve Lift With Factory Rocker Arm Ratio (0.56

UsageStreet/Strip

Valve Lift With Factory Rocker Arm Ratio0.547 int./0.560 exh.

QuantitySold as a pair

Exhaust Valve Lift0.56 in (14.224 mm)

Advertised Intake Duration272

Intake Duration At 050 Inch Lift237

Exhaust Duration At 050 Inch Lift244

Advertised Exhaust Duration283

Lifter TypeHydraulic Roller

Part FitmentSemi Universal

Duration At 050 Inch Lift237 int./244 exh.

Valve Springs RequiredYes

Vendor Part Number127600

Package Qty1

Package TypeEA
