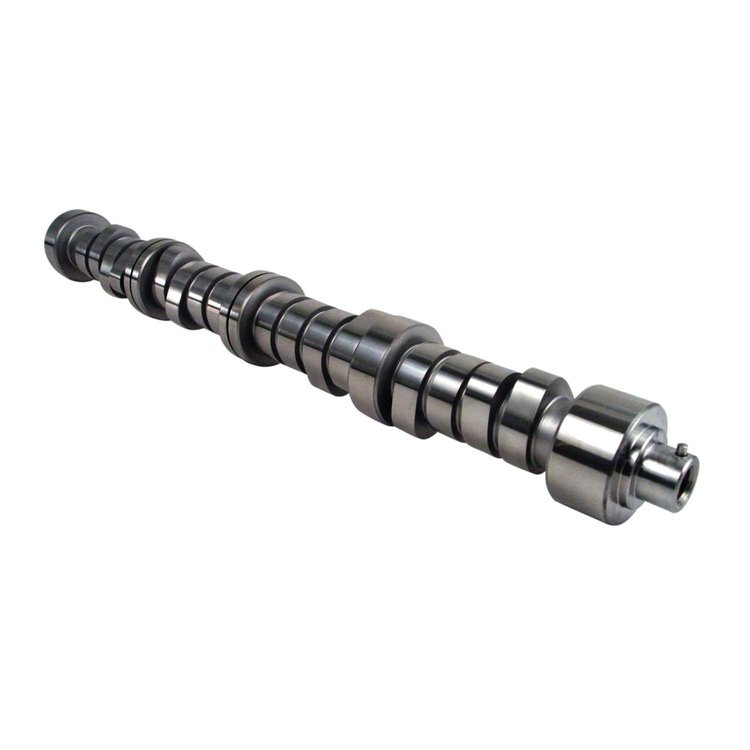

COMP Cams Tri-Power Xtreme Mechanical Roller Camshaft Lift .420"/.420" Duration 246/254 RPM Range 1200-3800
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-132-500-12

COMP Cams Tri-Power Xtreme Mechanical Roller Camshaft Lift .420"/.420" Duration 246/254 RPM Range 1200-3800

$89895
ShippingShips on Oct 28, 2026
Lowest PriceLowest Price Guarantee
Currently Unavailable

This product is currently not available. Please call customer service for assistance at 1-800-345-4545.

GM 6600/6.6L Duramax Diesel 2000-Present
    COMP Cams Tri-Power Xtreme Mechanical Roller Camshaft
    Lift .420"/.420"
    Duration 246/254
    RPM Range 1200-3800

    Optimized Fuel Mileage and Improved Torque/HP These COMP Cams Tri-Power Xtreme camshafts have been designed to work with the FAST-FLASH programmers to optimize torque and horsepower and improve fuel efficiency. They are available for late model, fuel injected, computer-controlled engines. The COMP Cams Tri-Power Xtreme camshafts feature a hydraulic roller design, work with a standard valvetrain, and require no modifications to install.

    Duramax; 6.6 Duramax; 6.6L Duramax; GM Duramax; Turbo Diesel


    Perfect for mild modfications, optimized fuel mileage and improved torque/hp. Good for heavy towing.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width3.0
Package Length24.5
Weight9.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)188
Cam StyleHydraulic roller tappet
Exh. Duration Advertised (Deg)254
Engine Make/SizeGM Duramax Diesel 6.6L
Intake Valve Lift With Factory Rocker Arm Ratio (I0.42
Int. Duration @ .050 In. (Deg)185
Basic Operating Rpm Range1,200-3,800
Intake Valve Lash0.01 in (0.254 mm)
Intake Valve Lift0.42 in (10.668 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)246
Lobe Separation (Deg)108
Rpm Range1200-3800
Advertised Duration246 int./254 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.42
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.420 int./0.420 exh.
QuantitySold individually
Exhaust Valve Lash0.01 in (0.254 mm)
Exhaust Valve Lift0.42 in (10.668 mm)
Advertised Intake Duration246
Intake Duration At 050 Inch Lift185
Exhaust Duration At 050 Inch Lift188
Advertised Exhaust Duration254
Lifter TypeHydraulic Roller
Duration At 050 Inch Lift185 int./188 exh.
Valve Springs RequiredYes
Vendor Part Number132-500-12
Package Qty1
Package TypeEA
