Magnum Roller Rocker Arms Ford 1968-89 289-351W (Rail-Type)
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-1431-1

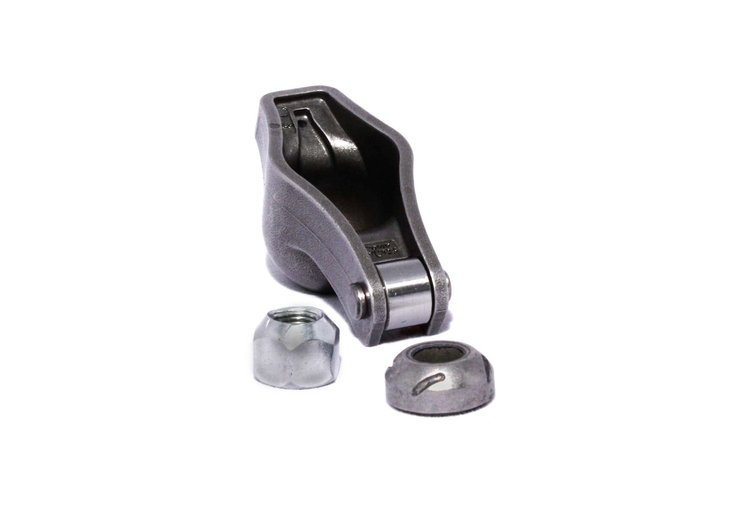

Magnum Roller Rocker Arms Ford 1968-89 289-351W (Rail-Type)

$1895
ShippingShips on Sep 03, 2026
Lowest PriceLowest Price Guarantee

Ford
    Magnum Roller Rocker Arms
  • Ford 1968-89 289-351W (Rail-Type)
  • 1.6 Ratio
  • 3/8" Rocker Stud
  • 1 Per Package

    Also for 1978-Present using studs #249-4504-16 but not for use with guide plates.

    Ford, 351W, Windsor, 351 Windsor, 302, 5.0 HO, Explorer, Mutang, Ford Mustang, 408, 347, Fox Body Mustang, Fox Body, 302 HO, Cougar, F100, F150


    Perfect for street performance, our 8620 chromemoly steel Magnum roller tip rockers can handle up to 350 lbs of pressure. This 1431 rail-type rocker features a 1.6 ratio for 3/8" stud '68-'89 Ford 289-351 Windsor.

    Designed with the serious performance enthusiast in mind...

    Magnum Roller Rocker Arms are the ultimate street rocker arms, helping your engine make more power and last longer.

    Show MoreStrength

    Made from 8620 chromemoly steel, Magnum Roller Rocker Arms are stronger than die cast aluminum or stamped steel rockers. Their stiffness guarantees maximum lift because the arms will not flex.
    Accuracy
    When your car's rocker ratio is off, you won't get maximum horsepower from the engine. Some rockers are as much as .040'' short on lift while Magnum Roller Rockers are dead-on each time.

    Power
    Magnum Roller Rockers make between 15 and 30 horsepower over other rockers because, combined with their stiff design, the roller tips reduce friction, yielding more effective valve lift.
    Durability
    The roller tip design reduces friction by not scrubbing the valve end or pushing the valve stem hard against the valve guide, which extends rocker life.

Part TypeRocker Arm
Product LineComp Cams Magnum Roller Rocker Arms
BrandCOMP CAMS
Package Height2.0
Package Width3.0
Package Length4.0
Weight0.5 PG
Part CategoryPerformance Parts
Arm FinishNatural
Rocker Arm Ratio1.6
Shims IncludedNo
PositionN/A
Maximum Spring Diameter1.5 in (38.1 mm)
Stud Size 0.3750
Slot StyleLong
Rocker Arm Nut StyleSelf-locking
QuantitySold individually
Rocker Arm Mounting StyleStud
Engine Make/SizeFord 289-351W
Self-AligningYes
Rocker Arm StyleRoller tip
Rocker Arm Body StyleStandard
Arm MaterialSteel
Ratio1.6
Part FitmentSemi Universal
Vendor Part Number1431-1
Package Qty1
Package TypeEA
