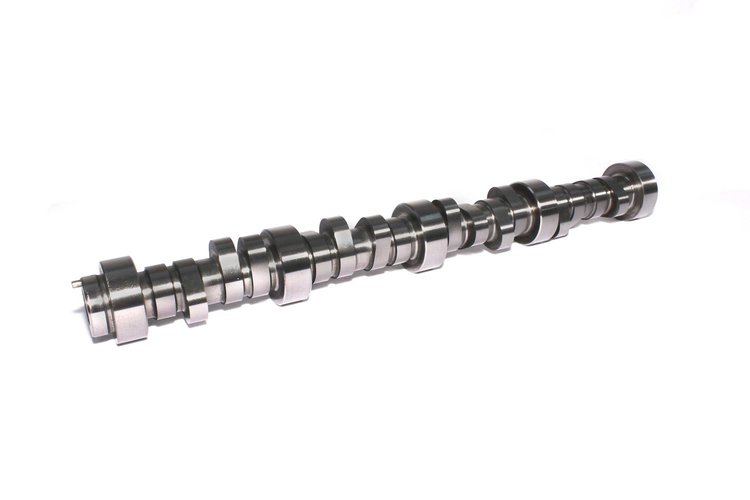

LSR Hydraulic Roller Camshaft
GM LS2/LS3, GEN IV 2005-Present (Single-Bolt)
• Lift: .624"/.624"
• Duration: 289°/305°
• Lobe Separation Angle: 114°
• RPM Range: 2400-7200

  Broad Top End Power Range, High RPM Race Only.



  Operating Range:	2400-7200 RPM
  Duration Advertised:	289° Intake / 305° Exhaust
  Duration @ .050' Lift:	239° Intake / 255° Exhaust
  Valve Lift:	.624' Intake / .624' Exhaust
  Lobe Separation Angle:	114°

  GM, 4.8, 5.3, 5.7, 6.0, 6.2, 7.0, LS1, LS2, LS3, LS4, LS6, LS7, LSA, LS9, Camaro, Silverado, LS Swap, 383, 350, SBC, Chevelle, Yukon, L92, LM7, 325, GMC, Trailblazer, Corvette, GM LS, GEN III, GEN 3, GEN IV, GEN 4, DOD, AFM, VVT, BTR, Texas Speed


  Broad top end power range for high RPM race only, single-bolt LS3 applications.


Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
