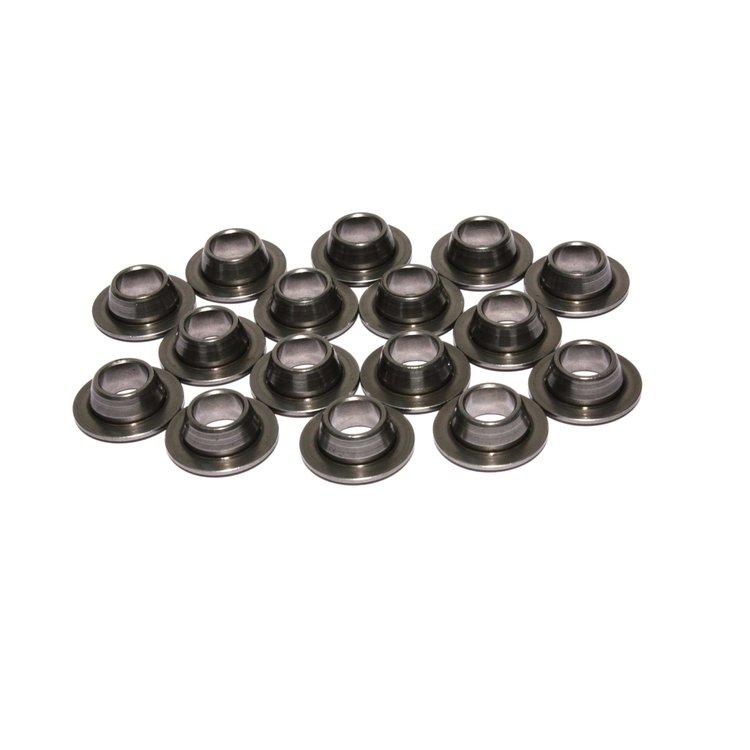

7° Lightweight Tool Steel Retainers Valve Spring Diameter: 1.055"
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-1787-16

7° Lightweight Tool Steel Retainers Valve Spring Diameter: 1.055"

$25895
3 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Tool Steel Retainers
  • 7° lock angle
    • 7° Lightweight Tool Steel Retainers
    • Valve Spring Diameter: 1.055"
    • Inside Diameter: .640"
    • 16/pkg

      Valve Stem Size: 11/32"

      GM, 4.8, 5.3, 5.7, 6.0, 6.2, 7.0, LS1, LS2, LS3, LS4, LS6, LS7, LSA, LS9, Camaro, Silverado, LS Swap, 383, 350, SBC, Chevelle, Yukon, L92, LM7, 325, GMC, Trailblazer, Corvette, GM LS, GEN III, GEN 3, GEN IV, GEN 4, DOD, AFM, VVT, BTR, Texas Speed


      CNC-machined for consistency, these 7 degree tool steel retainers feature light weight, exceptional strength and wear characteristics. Fit 11/32" valves with 1.055" OD springs such as our 26915, 26918, 26918, 26986, and 26995 springs.

      Comp Cams valve spring retainers are a must have when upgrading your valvetrain. Valve springs with larger diameters and higher spring pressures will require new retainers. Comp Cams standard steel retainers are made from 4140 chromemoly and have a black oxide finish. Perfect for hot street/strip applications. Their tool steel retainers are approximately 33% lighter than standard steel and 2-4 grams heavier than titanium. When upgrading from steel to titanium retainers, you gain speed and power because titanium is lighter and stronger. Titanium retainers are race proven for engines turning 10,000 RPM.

    Part TypeValve Spring Retainer
    Product LineComp Cams Valve Spring Retainers
    BrandCOMP CAMS
    Package Height2.05
    Package Width2.8
    Package Length4.1
    Weight0.45 PG
    Part CategoryPerformance Parts
    Lock Style7 degree
    Outside Diameter Of Outer Spring1.055 in (26.8 mm)
    Retainer StyleStandard
    QuantitySold as a set of 16
    Valve Spring Dia. Outside1.055 in.
    Part FitmentSemi Universal
    Locks IncludedNo
    Retainer MaterialTool steel
    Inside Diameter Of Inner Spring0.64 in (16.256 mm)
    Valve Spring StyleBeehive
    Number Of Springs Per ValveSingle
    Vendor Part Number1787-16
    Package Qty1
    Package TypeEA
    Some parts are not legal for use in California or other states with similar laws / regulations
