Magnum Hydraulic Roller Camshaft Chevy 4.3L V6 1980-97 Lift: .500"/.500"
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-18-420-8

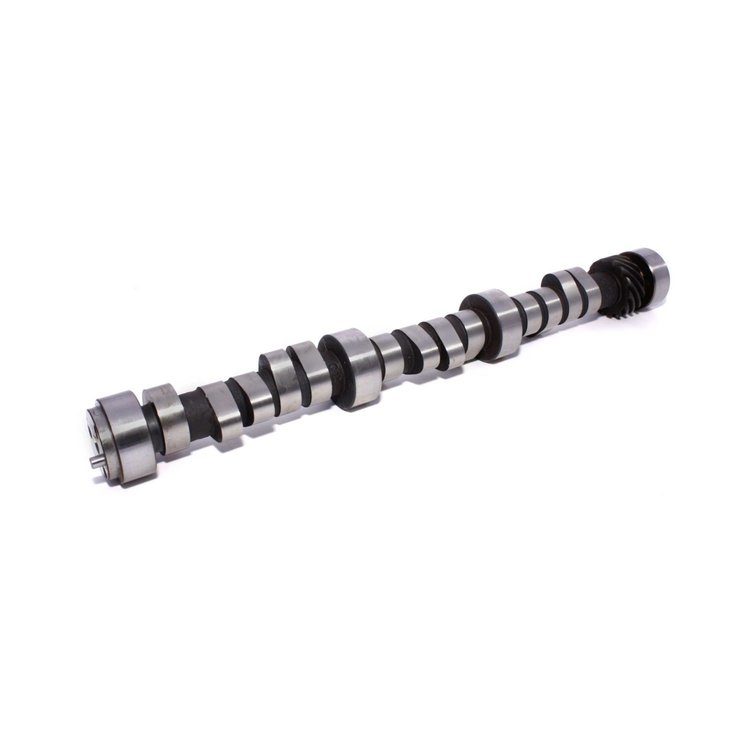

Magnum Hydraulic Roller Camshaft Chevy 4.3L V6 1980-97 Lift: .500"/.500"

$57795
ShippingShips on 09/15/2026
Lowest PriceLowest Price Guarantee

Chevrolet 4.3 Liter 262ci 90° 6 Cyl. 1980-1997
  • Retro Fit for Non-Computer Controlled Vehicles
      • Magnum Hydraulic Roller Camshaft
      Chevy 4.3L V6 1980-97
    • Lift: .500"/.500"
    • Duration: 270°/270°
    • Lobe Separation Angle: 110°
    • RPM Range: 1800-5000

    • Cams Are Very Aggressive
    • Designed For Performance Oriented Vehicles
    • Deliver More Power Than Standard Camshafts
    • 1 Year Limited Warranty

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    Part TypeCamshaft
    BrandCOMP CAMS
    Package Height2.75
    Package Width3.0
    Package Length24.5
    Weight6.93 PG
    Part CategoryPerformance Parts
    Exh. Duration @ .050 In. (Deg)215
    Cam StyleHydraulic roller tappet
    Grind Number270HR
    Exh. Duration Advertised (Deg)270
    Engine Make/SizeChevy 262
    Intake Valve Lift With Factory Rocker Arm Ratio (I0.5
    Int. Duration @ .050 In. (Deg)215
    Basic Operating Rpm Range1,800-5,000
    Intake Valve Lift0.5 in (12.7 mm)
    Computer-Controlled CompatibleNo
    Int. Duration Advertised (Deg)270
    Lobe Separation (Deg)110
    Rpm Range1800-5000
    Advertised Duration270 int./270 exh.
    Exhaust Valve Lift With Factory Rocker Arm Ratio (0.5
    UsageStreet/Strip
    Valve Lift With Factory Rocker Arm Ratio0.500 int./0.500 exh.
    Camshaft Gear Attachment3-bolt
    QuantitySold individually
    Exhaust Valve Lift0.5 in (12.7 mm)
    Advertised Intake Duration270
    Intake Duration At 050 Inch Lift215
    Exhaust Duration At 050 Inch Lift215
    Advertised Exhaust Duration270
    Lifter TypeHydraulic Roller
    Duration At 050 Inch Lift215 int./215 exh.
    Valve Springs RequiredYes
    Vendor Part Number18-420-8
    Package Qty1
    Package TypeEA
