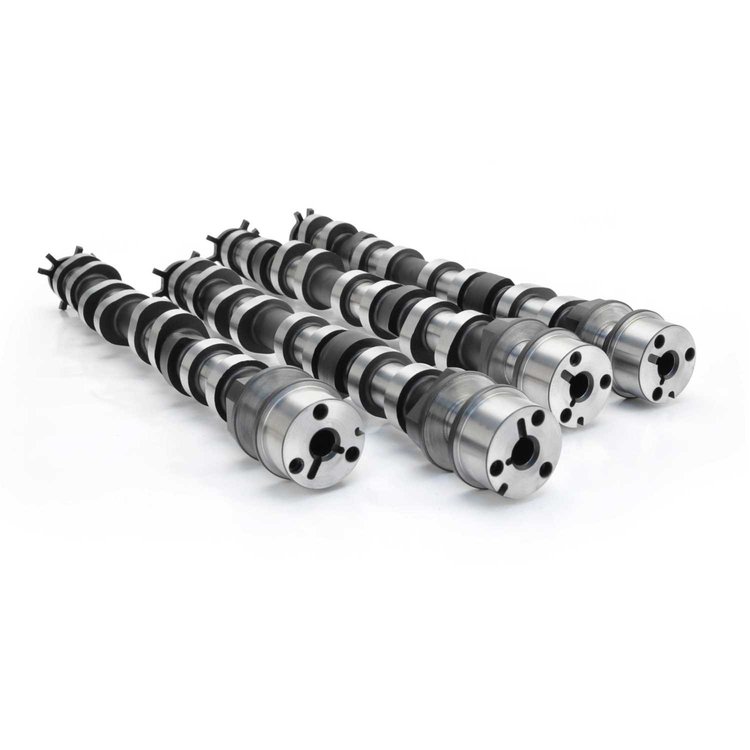

Hydraulic Roller Cams 5.0L Coyote Engine
- Hydraulic Roller Cams
- 2011 to 2014 5.0L Coyote Engine
- Advertised Duration: 275
- Valve Lift Int: .492
- Valve Lift Exh: .453
- Duration @ .050 Int: 228
- Duration @ .050 Exh: 231
- Lobe Separation: 126
- Designed Specifically For 2011 Ford Coyote V8
- Produces Safe Power And Function
- Engineered For High Lift
- Long Duration Valve Motion At High RPM
- Exclusive Integrated Counter Balance Design
- Reduces Vibration/Valve Train Harmonics
Coyote; 5.0; Ford Mustang; Mustang; S550; GT; GT350; Shelby; Mustang GT; S197
Big power gains in mid to upper RPM range, especially above 4900 RPM. Requires phaser limiter kit and custom ECU programming.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
The new billet hydraulic roller cams from COMP Cams unlock a major power upgrade for the 2011 Ford Mustang 5.0. Designed specifically for Coyote V8 applications, these camshafts are counter balanced and work with phaser limiters to produce optimum safe power. The gigantic lobe size on the Ford OHC is unlike any other cam-in-block engine, and the dangerous harmonics that come with the giant lobes must be addressed for high performance usage. By taking cutting-edge race technology and applying it to street applications, COMP Cams has engineered these new phaser-friendly cams with an exclusive integrated counter balance design that cuts down on vibrations and reduces overall harmonics to ensure a smoother operating valve train that was properly engineered for high lift, long duration valve motion at high RPM. These newly engineered Ford 5.0 camshafts are available for both naturally aspirated and supercharged engines, with three stages available in each series, as well as custom grind and No Valve Springs Required versions. Optimized race and street profiles give you the power where you need it most, whether that's maximized mid-range power and torque or increased top end horsepower.
Show More
Features:
- Available for both naturally aspirated and supercharged engines
- Three stages available in each series
- No valve springs required
- The perfect combination for any Ford engine builder contemplating increased stroke displacement
