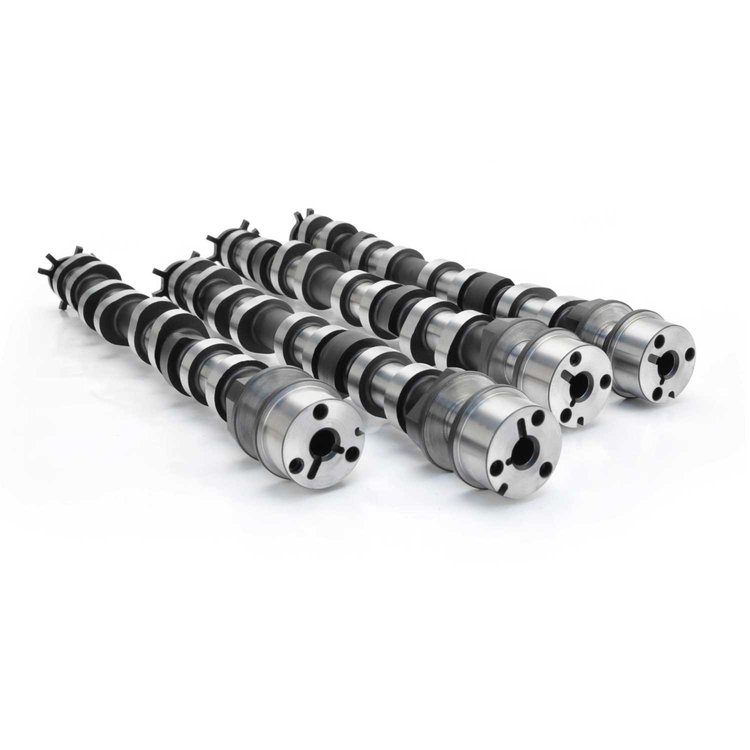

Hydraulic Roller Cams 5.0L Coyote Engine
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-191260

Hydraulic Roller Cams 5.0L Coyote Engine

$1,70796$2134.95You Save$426.99
ShippingShips on 09/04/2026
Lowest PriceLowest Price Guarantee

5.0L Coyote Hydraulic Roller Cams
  • (No Springs Required)
  • Blower Hydraulic Roller Swinging/Finger Follower Camshafts
    • Hydraulic Roller Cams
    • 2011 to 2014 5.0L Coyote Engine
    • Advertised Duration: 267
    • Valve Lift Int: .492
    • Valve Lift Exh: .453
    • Duration @ .050 Int: 220
    • Duration @ .050 Exh: 227
    • Lobe Separation: 128

    • Designed Specifically For 2011 Ford Coyote V8
    • Produces Safe Power And Function
    • Engineered For High Lift
    • Long Duration Valve Motion At High RPM
    • Exclusive Integrated Counter Balance Design
    • Reduces Vibration/Valve Train Harmonics

      Coyote; 5.0; Ford Mustang; Mustang; S550; GT; GT350; Shelby; Mustang GT; S197


      Great upgrade over stock cams with bolt-on blowers and standard boost levels. Requires phaser limiter kit and custom ECU programming.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    The new billet hydraulic roller cams from COMP Cams unlock a major power upgrade for the 2011 Ford Mustang 5.0. Designed specifically for Coyote V8 applications, these camshafts are counter balanced and work with phaser limiters to produce optimum safe power. The gigantic lobe size on the Ford OHC is unlike any other cam-in-block engine, and the dangerous harmonics that come with the giant lobes must be addressed for high performance usage. By taking cutting-edge race technology and applying it to street applications, COMP Cams has engineered these new phaser-friendly cams with an exclusive integrated counter balance design that cuts down on vibrations and reduces overall harmonics to ensure a smoother operating valve train that was properly engineered for high lift, long duration valve motion at high RPM. These newly engineered Ford 5.0 camshafts are available for both naturally aspirated and supercharged engines, with three stages available in each series, as well as custom grind and No Valve Springs Required versions. Optimized race and street profiles give you the power where you need it most, whether that's maximized mid-range power and torque or increased top end horsepower.

    Show More

    Features:

    • Available for both naturally aspirated and supercharged engines
    • Three stages available in each series
    • No valve springs required
    • The perfect combination for any Ford engine builder contemplating increased stroke displacement
    Part TypeCamshaft
    Product LineComp Cams Ford DOHC 5.0L Coyote Hydraulic Roller Camshafts
    BrandCOMP CAMS
    Package Height6.12
    Package Width6.12
    Package Length24.5
    Weight24.9 PG
    Part CategoryPerformance Parts
    Exh. Duration @ .050 In. (Deg)227
    Cam StyleHydraulic roller follower
    Grind NumberF5.0D NSR-BL1H-128
    Exh. Duration Advertised (Deg)267
    Engine Make/SizeFord 5.0L/302
    Intake Valve Lift With Factory Rocker Arm Ratio (I0.492
    Int. Duration @ .050 In. (Deg)220
    Basic Operating Rpm Range1,500-6,900
    Intake Valve Lift0.492 in (12.497 mm)
    Computer-Controlled CompatibleYes
    Int. Duration Advertised (Deg)267
    Lobe Separation (Deg)128
    Rpm Range1500-6900
    Advertised Duration260 int./271 exh.
    Exhaust Valve Lift With Factory Rocker Arm Ratio (0.453
    UsageStreet/Performance
    Valve Lift With Factory Rocker Arm Ratio0.492 int./0.453 exh.
    QuantitySold as a set of 4
    Exhaust Valve Lift0.453 in (11.506 mm)
    Advertised Intake Duration260
    Intake Duration At 050 Inch Lift220
    Exhaust Duration At 050 Inch Lift227
    Advertised Exhaust Duration271
    Lifter TypeHydraulic Roller
    Part FitmentSemi Universal
    Duration At 050 Inch Lift220 int./227 exh.
    Valve Springs RequiredNo
    Vendor Part Number191260
    Package Qty1
    Package TypeEA
