Vehicle Info NeededCOMP CAMSPART NUMBER: 249-191460

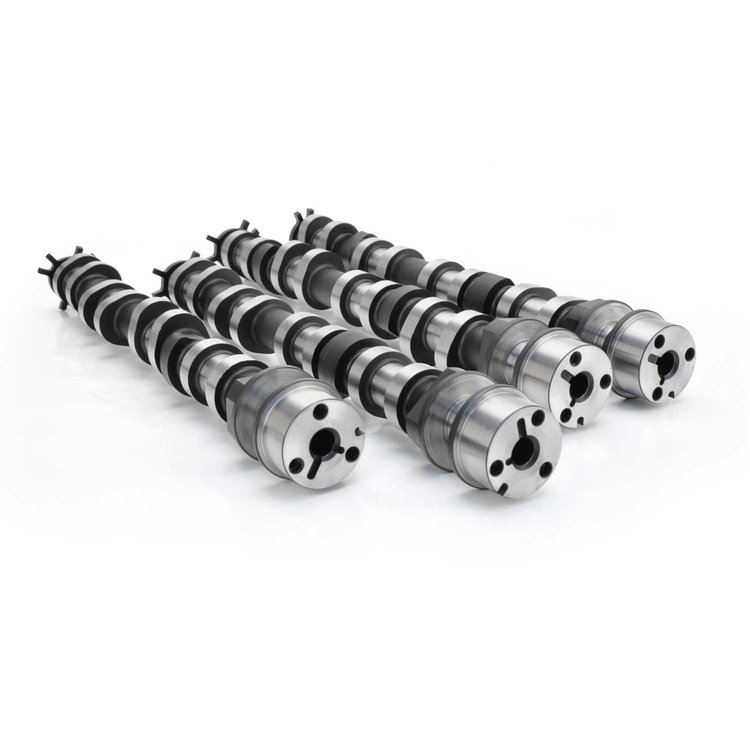

Hydraulic Roller Cams 5.0L Coyote Engine
$2,13495
Ships Tomorrow
Lowest Price Guarantee5.0L Coyote Hydraulic Roller Cams (No Springs Required) Blower Hydraulic Roller Swinging/Finger Follower Camshafts
- Hydraulic Roller Cams
- 2011 to 2014 5.0L Coyote Engine
- Advertised Duration: 283
- Valve Lift Int: .492
- Valve Lift Exh: .453
- Duration @ .050 Int: 236
- Duration @ .050 Exh: 243
- Lobe Separation: 128
- Designed Specifically For 2011 Ford Coyote V8
- Produces Safe Power And Function
- Engineered For High Lift
- Long Duration Valve Motion At High RPM
- Exclusive Integrated Counter Balance Design
- Reduces Vibration/Valve Train Harmonics
Coyote; 5.0; Ford Mustang; Mustang; S550; GT; GT350; Shelby; Mustang GT; S197
Max effort street/strip cam set. Best choice when running higher boost levels and high RPM in modified engines. Requires phaser limiter kit and custom ECU programming.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.8
Package Width2.9
Package Length24.2
Weight9.76 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)243
Cam StyleHydraulic roller follower
Grind NumberF5.0D NSR-BL3H-128
Exh. Duration Advertised (Deg)283
Engine Make/SizeFord 5.0L/302
Intake Valve Lift With Factory Rocker Arm Ratio (I0.492
Int. Duration @ .050 In. (Deg)236
Basic Operating Rpm Range2,000-7,300
Intake Valve Lift0.492 in (12.497 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)283
Lobe Separation (Deg)128
Rpm Range2000-7300
Advertised Duration276 int./287 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.453
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.492 int./0.453 exh.
QuantitySold as a set of 4
Exhaust Valve Lift0.453 in (11.506 mm)
Advertised Intake Duration276
Intake Duration At 050 Inch Lift236
Exhaust Duration At 050 Inch Lift243
Advertised Exhaust Duration287
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift236 int./243 exh.
Valve Springs RequiredNo
Vendor Part Number191460
Package Qty1
Package TypeEA
