Vehicle Info NeededCOMP CAMSPART NUMBER: 249-20-220-3

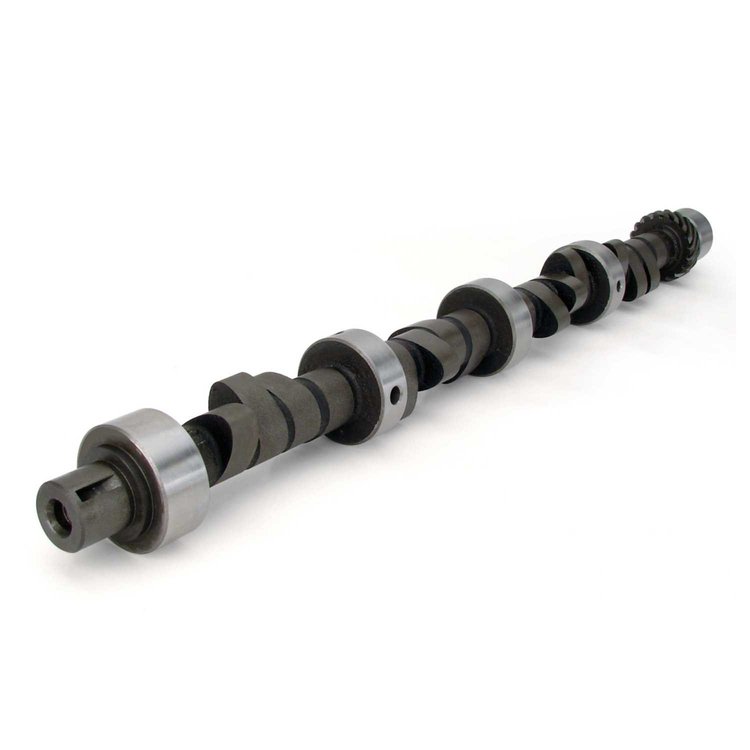

Xtreme Energy 250H Hydraulic Flat Tappet Camshaft Only Lift .432"/.444" Duration 250°/260° RPM Range 800-4800
$29795
Ships on Sep 15, 2026
Lowest Price GuaranteeChrysler 273-360ci Small Block 1964-2003
- Xtreme Energy 250H Hydraulic Flat Tappet Camshaft Only
- More Exhaust Duration And Lift Than Intake
- Increased Mid And Upper RPM Power
- 1 Year Limited Warranty
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA
Very strong torque excellent mileage, smooth idle.
Lift .432"/.444"
Duration 250°/260°
RPM Range 800-4800
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.8
Package Width2.8
Package Length24.4
Weight9.8 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)212
Cam StyleHydraulic flat tappet
Grind NumberCRS XE250H-10
Exh. Duration Advertised (Deg)260
Engine Make/SizeMopar 273-360
Intake Valve Lift With Factory Rocker Arm Ratio (I0.432
Int. Duration @ .050 In. (Deg)206
Basic Operating Rpm Range800-4,800
Intake Valve Lift0.432 in (10.973 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)250
Lobe Separation (Deg)110
Rpm Range800-4800
Advertised Duration250 int./260 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.444
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.432 int./0.444 exh.
QuantitySold individually
Exhaust Valve Lift0.444 in (11.278 mm)
Advertised Intake Duration250
Intake Duration At 050 Inch Lift206
Exhaust Duration At 050 Inch Lift212
Advertised Exhaust Duration260
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift206 int./212 exh.
Valve Springs RequiredYes
Vendor Part Number20-220-3
Package Qty1
Package TypeEA
