Vehicle Info NeededCOMP CAMSPART NUMBER: 249-20-221-3

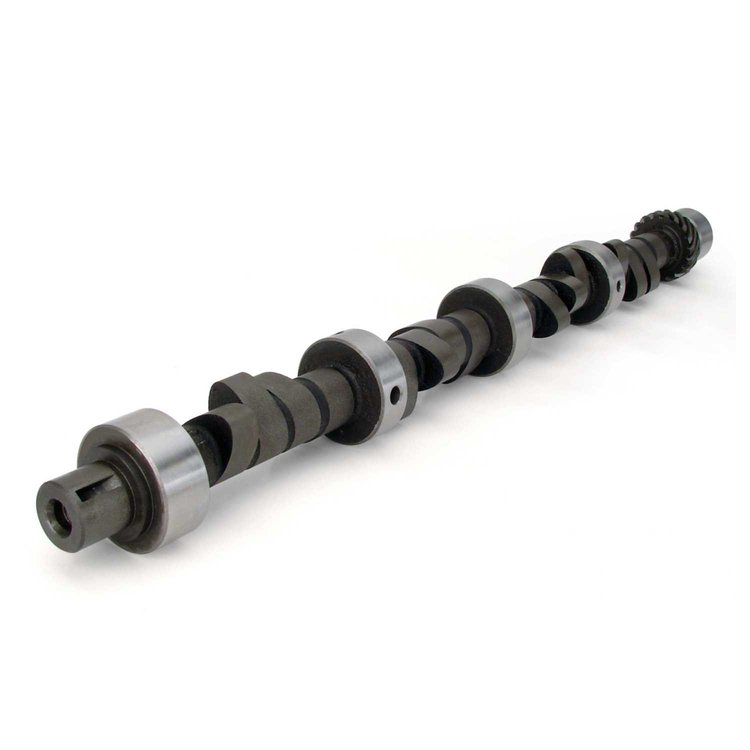

Xtreme Energy 256H Hydraulic Flat Tappet Camshaft Only Lift .447"/.455" Duration 256°/268° RPM Range 1000-5200
$29795
3 left in stock
Ships Today
Lowest Price GuaranteeChrysler 273-360ci Small Block 1964-2003
- Xtreme Energy 256H Hydraulic Flat Tappet Camshaft Only
- Produces Better Throttle Response
- Produces Top Engine Horsepower
- Delivers Increased Engine Vacuum
- 1 Year Limited Warranty
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA
Strong torque through low end and mid-range, good idle.
Lift .447"/.455"
Duration 256°/268°
RPM Range 1000-5200
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.9
Package Width3.0
Package Length24.4
Weight9.7 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)218
Cam StyleHydraulic flat tappet
Grind NumberCRS XE256H-10
Exh. Duration Advertised (Deg)268
Engine Make/SizeMopar 273-360
Intake Valve Lift With Factory Rocker Arm Ratio (I0.447
Int. Duration @ .050 In. (Deg)212
Basic Operating Rpm Range1,000-5,200
Intake Valve Lift0.447 in (11.354 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)256
Lobe Separation (Deg)110
Rpm Range1000-5200
Advertised Duration256 int./268 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.455
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.447 int./0.455 exh.
QuantitySold individually
Exhaust Valve Lift0.455 in (11.557 mm)
Advertised Intake Duration256
Intake Duration At 050 Inch Lift212
Exhaust Duration At 050 Inch Lift218
Advertised Exhaust Duration268
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift212 int./218 exh.
Valve Springs RequiredYes
Vendor Part Number20-221-3
Package Qty1
Package TypeEA
