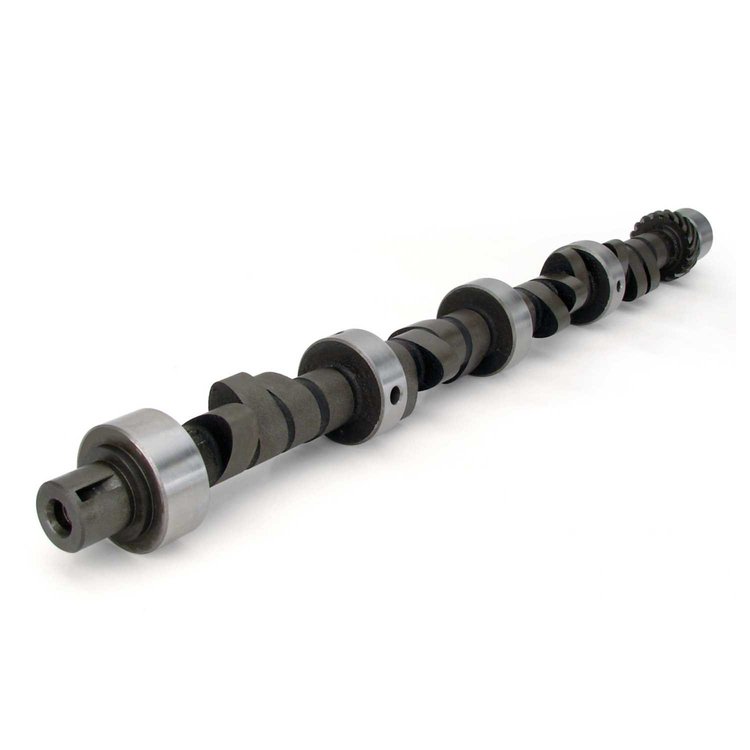

Xtreme Hi-Lift Hydraulic Flat Tappet Camshaft Chrysler 273-360ci 1964-2000 Lift: .525"/.525"
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-20-227-4

Xtreme Hi-Lift Hydraulic Flat Tappet Camshaft Chrysler 273-360ci 1964-2000 Lift: .525"/.525"

$30995
ShippingShips on 09/15/2026
Lowest PriceLowest Price Guarantee

Chrysler 273-360ci 1964-2000
    Xtreme Hi-Lift Hydraulic Flat Tappet Camshaft
    Chrysler 273-360ci 1964-2000
  • Lift: .525"/.525"
  • Duration: 275°/287°
  • Lobe Separation Angle: 110°
  • RPM Range: 2000-6000

    Best all around performance cam. Extra lift to help engine breathe at higher RPM 2500 stall with 9:1 comp.

    273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA


    Best all around performance cam. Extra lift to help engine breathe at higher RPM, 2500+ stall with 9:1 compression.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    These Comp Cams Xtreme Energy Hi-Lift Camshafts are designed to take advantage of the latest improvements in valvetrain components and the newest developments in camshaft design. The aggressive lobe design of these cams produces better throttle response, and the high-lift design gives extra lift for top-end horsepower.

    Camshaft & Lifter Kits are indicated by a CL in their part number and include Camshaft, Lifters, Assembly Lube, Decals, and Instructions.

    Complete Kits are indicated by a K in their part number and include Camshaft, Lifters, Timing Chain & Gears, Valve Springs, Retainers, Locks, Assembly Lube, Decals, and Instructions.

    Small Kits are indicated by a SK in their part number and include Camshaft, Lifters, Timing Chain Set, Assembly Lube, Decals, and Instructions.

Part TypeCamshaft
Product LineComp Cams Xtreme Hi-Lift Hydraulic Flat Camshafts
BrandCOMP CAMS
Package Height2.6
Package Width2.7
Package Length24.2
Weight9.35 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)237
Cam StyleHydraulic flat tappet
Grind NumberCRS XE275HL-10
Exh. Duration Advertised (Deg)287
Engine Make/SizeMopar V8
Intake Valve Lift With Factory Rocker Arm Ratio (I0.525
Int. Duration @ .050 In. (Deg)231
Basic Operating Rpm Range2,000-6,000
Intake Valve Lift0.525 in (13.335 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)275
Lobe Separation (Deg)110
Rpm Range2000-6000
Advertised Duration275 int./287 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.525
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.525 int./0.525 exh.
QuantitySold individually
Exhaust Valve Lift0.525 in (13.335 mm)
Advertised Intake Duration275
Intake Duration At 050 Inch Lift231
Exhaust Duration At 050 Inch Lift237
Advertised Exhaust Duration287
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift231 int./237 exh.
Valve Springs RequiredYes
Vendor Part Number20-227-4
Package Qty1
Package TypeEA
