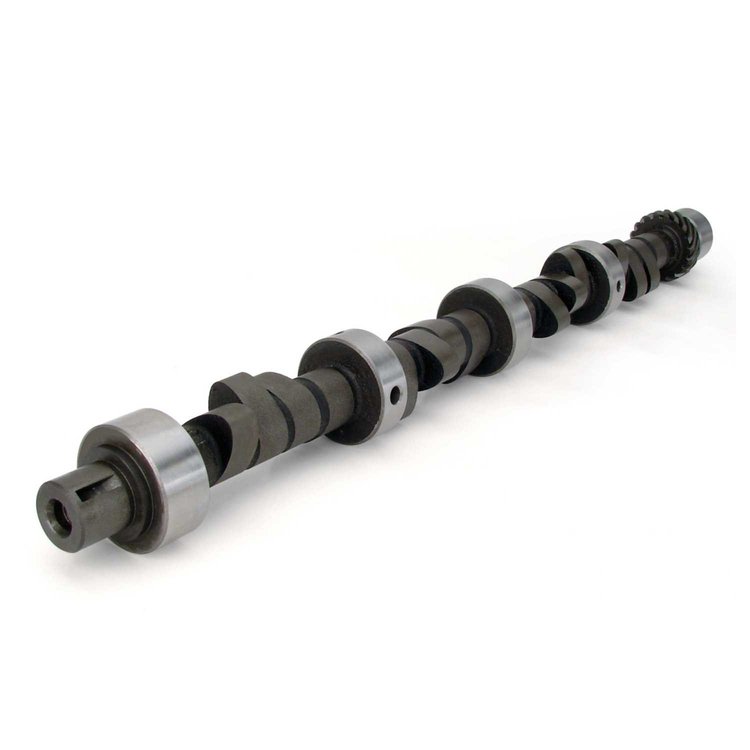

Xtreme Hi-Lift Hydraulic Flat Tappet Camshaft Chrysler 273-360ci 1964-2000 Lift: .545"/.545"
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-20-228-4

Xtreme Hi-Lift Hydraulic Flat Tappet Camshaft Chrysler 273-360ci 1964-2000 Lift: .545"/.545"

$30995
ShippingShips on 09/15/2026
Lowest PriceLowest Price Guarantee

Chrysler 273-360ci 1964-2000
    Xtreme Hi-Lift Hydraulic Flat Tappet Camshaft
    Chrysler 273-360ci 1964-2000
  • Lift: .545"/.545"
  • Duration: 285°/297°
  • Lobe Separation Angle: 110°
  • RPM Range: 2500-6500

    Serious street/strip cam Strong Midrange & upper RPM power. Hi-Lift design to take advantage of ported heads and single plane intake, 3000 stall with 9.5:1 comp.

    273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA


    Serious street/strip cam. Strong mid-range and upper RPM power. Hi-lift design to take advantage of ported heads and single plane intake, 3000+ stall with 9.5:1 compression.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    These Comp Cams Xtreme Energy Hi-Lift Camshafts are designed to take advantage of the latest improvements in valvetrain components and the newest developments in camshaft design. The aggressive lobe design of these cams produces better throttle response, and the high-lift design gives extra lift for top-end horsepower.

    Camshaft & Lifter Kits are indicated by a CL in their part number and include Camshaft, Lifters, Assembly Lube, Decals, and Instructions.

    Complete Kits are indicated by a K in their part number and include Camshaft, Lifters, Timing Chain & Gears, Valve Springs, Retainers, Locks, Assembly Lube, Decals, and Instructions.

    Small Kits are indicated by a SK in their part number and include Camshaft, Lifters, Timing Chain Set, Assembly Lube, Decals, and Instructions.

Part TypeCamshaft
Product LineComp Cams Xtreme Hi-Lift Hydraulic Flat Camshafts
BrandCOMP CAMS
Package Height2.8
Package Width3.0
Package Length24.2
Weight9.1 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)247
Cam StyleHydraulic flat tappet
Grind NumberCRS XE285HL-10
Exh. Duration Advertised (Deg)297
Engine Make/SizeMopar V8
Intake Valve Lift With Factory Rocker Arm Ratio (I0.545
Int. Duration @ .050 In. (Deg)241
Basic Operating Rpm Range2,500-6,500
Intake Valve Lift0.545 in (13.843 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)285
Lobe Separation (Deg)110
Rpm Range2500-6500
Advertised Duration285 int./297 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.545
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.545 int./0.545 exh.
QuantitySold individually
Exhaust Valve Lift0.545 in (13.843 mm)
Advertised Intake Duration285
Intake Duration At 050 Inch Lift241
Exhaust Duration At 050 Inch Lift247
Advertised Exhaust Duration297
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift241 int./247 exh.
Valve Springs RequiredYes
Vendor Part Number20-228-4
Package Qty1
Package TypeEA
