Vehicle Info NeededCOMP CAMSPART NUMBER: 249-20-229-4

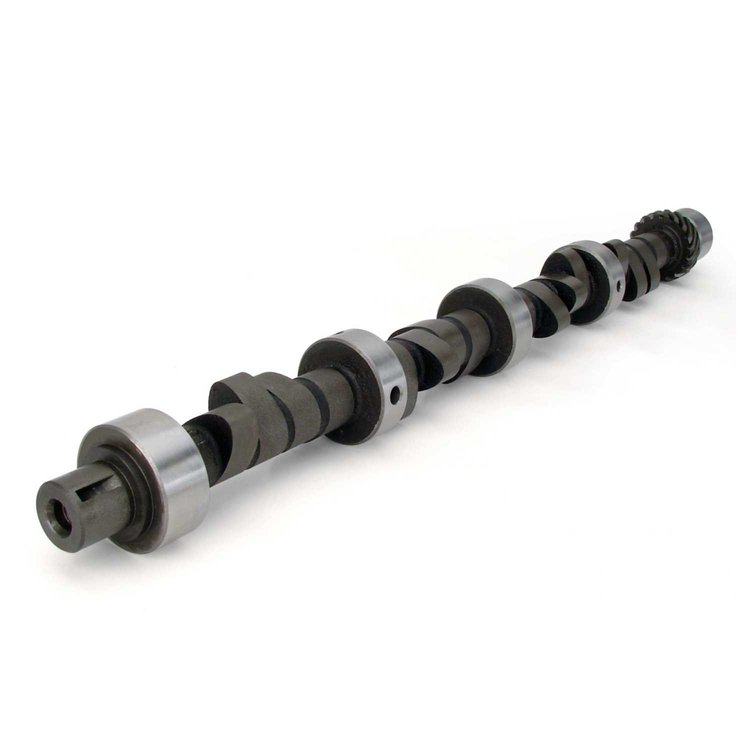

Xtreme Hi-Lift Hydraulic Flat Tappet Camshaft Chrysler 273-360ci 1964-2000 Lift: .564"/.564"
$30995
Ships on Sep 03, 2026
Lowest Price GuaranteeChrysler 273-360ci 1964-2000
- Xtreme Hi-Lift Hydraulic Flat Tappet Camshaft
- Lift: .564"/.564"
- Duration: 295°/307°
- Lobe Separation Angle: 110°
- RPM Range: 3000-6800
Max effort street/bracket race cam. Likes ported heads and single plane Intake 3500 stall with 10:1 compression.273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA
Max effort street/bracket race cam. Likes ported heads and single plane intake, 3500+ stall with 10:1 compression.
Chrysler 273-360ci 1964-2000
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.9
Package Width2.9
Package Length24.2
Weight9.05 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)257
Cam StyleHydraulic flat tappet
Grind NumberCRS XE295HL-10
Exh. Duration Advertised (Deg)304
Engine Make/SizeMopar V8
Intake Valve Lift With Factory Rocker Arm Ratio (I0.564
Int. Duration @ .050 In. (Deg)251
Basic Operating Rpm Range3,000-6,800
Intake Valve Lift0.564 in (14.326 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)295
Lobe Separation (Deg)110
Rpm Range3000-6800
Advertised Duration295 int./307 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.564
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.564 int./0.564 exh.
QuantitySold individually
Exhaust Valve Lift0.564 in (14.326 mm)
Advertised Intake Duration295
Intake Duration At 050 Inch Lift251
Exhaust Duration At 050 Inch Lift257
Advertised Exhaust Duration307
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift251 int./257 exh.
Valve Springs RequiredYes
Vendor Part Number20-229-4
Package Qty1
Package TypeEA
