Vehicle Info NeededCOMP CAMSPART NUMBER: 249-20-322-4

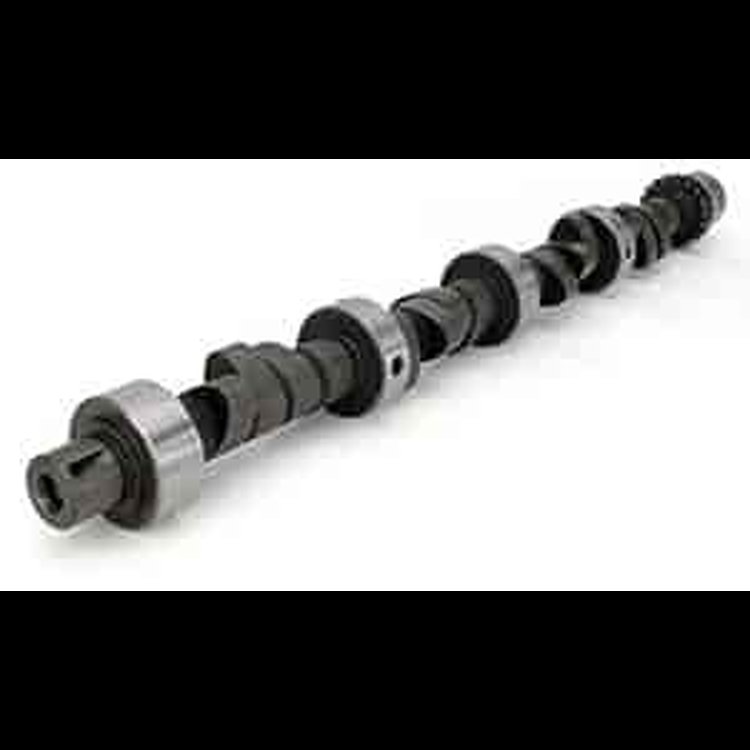

COMP Cams Specialty Hydraulic Flat Camshaft Lift .501"/.510" Duration 292/296 Lobe Angle 108°
$18299
Ships on 09/16/2026
Lowest Price GuaranteeCHRYSLER V8 273-360 1962-1997 W/ 1.5 ROCKERS
- COMP Cams Specialty Hydraulic Flat Camshaft
- Specialty Camshaft
- 1 Year Limited Warranty
Chrysler; Dodge; Plymouth; 273; 318; 340; 360; Magnum; LA; Barracuda; 5.2; 5.9; Challenger; Charger; Charger 500; Li' Red Express; Ram; Ramcharger; Cuda; MOPAR
Lift .501"/.510"
Duration 292/296
Lobe Angle 108°
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width3.0
Package Length24.5
Weight9.6 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)246
Cam StyleHydraulic flat tappet
Grind NumberCRS 292AH-8
Exh. Duration Advertised (Deg)296-3
Engine Make/SizeChevy Small Block (262-400)
Intake Valve Lift With Factory Rocker Arm Ratio (I0.501
Int. Duration @ .050 In. (Deg)244
Intake Valve Lift0.501 in (12.725 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)292-2
Lobe Separation (Deg)108
Rpm Range2500-6400
Advertised Duration292 int./296 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.51
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.501 int./0.510 exh.
QuantitySold individually
Exhaust Valve Lift0.51 in (12.954 mm)
Advertised Intake Duration292
Intake Duration At 050 Inch Lift244
Exhaust Duration At 050 Inch Lift246
Advertised Exhaust Duration296
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift244 int./246 exh.
Valve Springs RequiredYes
Vendor Part Number20-322-4
Package Qty1
Package TypeEA
