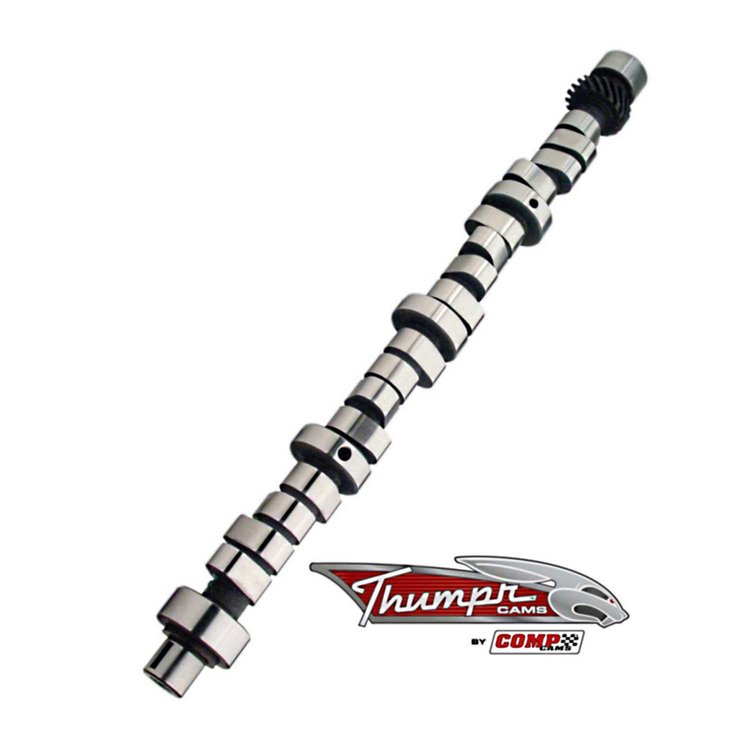

Mutha Thumpr Retro-Fit Hydraulic Roller Camshaft Lift: .522"/.509"
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-20-601-9

Mutha Thumpr Retro-Fit Hydraulic Roller Camshaft Lift: .522"/.509"

$55895
2 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Chrysler 273-360 ci. 8 Cyl. 1964-2003 Non-Factory Roller Block
  • Mutha Thumpr
    • Mutha Thumpr Retro-Fit Hydraulic Roller Camshaft
    • Lift: .522"/.509"
    • Duration: 291°/311°
    • Lobe Separation Angle: 107°
    • RPM Range: 2200-5900

      Valve Setting: Intake - Hyd, Exhaust - Hyd
      RPM Operating Range: 2200 to 5900
      Cam Grind Number: 291THR7
      Duration Advertised: Intake - 291, Exhaust - 311
      Duration @ .050': Intake - 235, Exhaust - 249
      Valve Lift: Intake - .521, Exhaust - .507
      Lobe Sep. Angle: 107°

      273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA


      High performance street/strip, needs 9:1 compression, 2500+ stall, intake, gears and headers, rough idle.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    Part TypeCamshaft
    BrandCOMP CAMS
    Package Height2.9
    Package Width2.9
    Package Length24.4
    Weight8.85 PG
    Part CategoryPerformance Parts
    Exh. Duration @ .050 In. (Deg)249
    Cam StyleHydraulic roller tappet
    Grind Number291THR7
    Exh. Duration Advertised (Deg)311
    Engine Make/SizeMopar 273-360
    Intake Valve Lift With Factory Rocker Arm Ratio (I0.522
    Int. Duration @ .050 In. (Deg)235
    Basic Operating Rpm Range2,200-5,900
    Intake Valve Lift0.522 in (13.259 mm)
    Computer-Controlled CompatibleNo
    Int. Duration Advertised (Deg)291
    Lobe Separation (Deg)107
    Rpm Range2200-5900
    Advertised Duration291 int./311 exh.
    Exhaust Valve Lift With Factory Rocker Arm Ratio (0.509
    UsageStreet/Performance
    Valve Lift With Factory Rocker Arm Ratio0.522 int./0.509 exh.
    QuantitySold individually
    Exhaust Valve Lift0.509 in (12.929 mm)
    Advertised Intake Duration291
    Intake Duration At 050 Inch Lift235
    Exhaust Duration At 050 Inch Lift249
    Advertised Exhaust Duration311
    Lifter TypeHydraulic Roller Retrofit
    Part FitmentSemi Universal
    Duration At 050 Inch Lift235 int./249 exh.
    Valve Springs RequiredYes
    Vendor Part Number20-601-9
    Package Qty1
    Package TypeEA
