Vehicle Info NeededCOMP CAMSPART NUMBER: 249-20-604-9

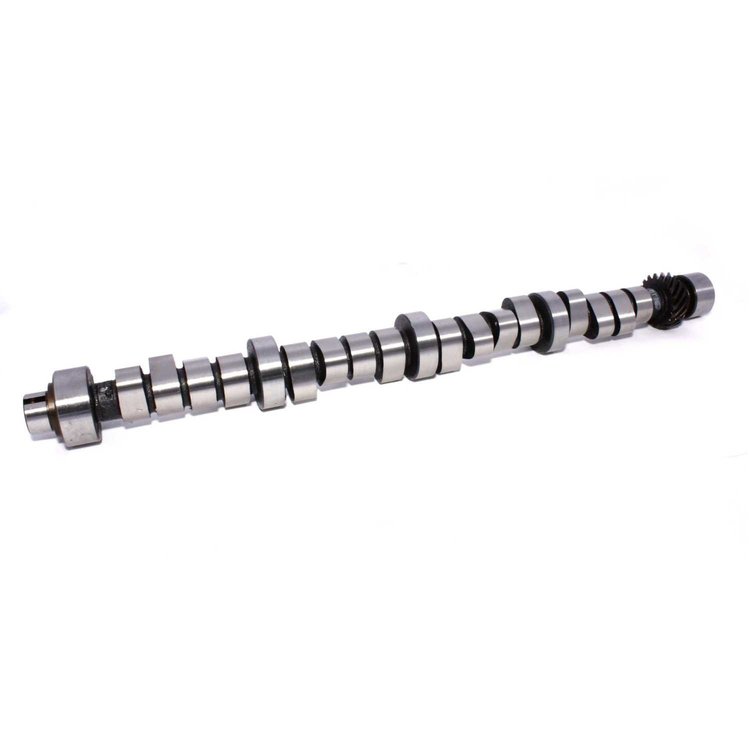

Comp Cams Computer Controlled Series Cams
$55895
3 left in stock
Ships Today
Lowest Price GuaranteeChrysler 273-360
1992-02 Magnum Engines
1992-02 Magnum Engines
- Computer Controlled Hydraulic Roller Camshaft
Lift: .512''/.512''
Duration: 264°/274°
Lobe Separation Angle: 112°
RPM Range: 900-5200
Will require computer modifications.
| Operating Range: | 900-5200 RPM |
| Duration Advertised: | 264° Intake / 274° Exhaust |
| Duration @ .050' Lift: | 210° Intake / 220° Exhaust |
| Valve Lift: | .512' Intake / .512' Exhaust |
| Lobe Separation Angle: | 112° |
Chrysler; Dodge; Plymouth; 273; 318; 340; 360; Magnum; LA; Barracuda; 5.2; 5.9; Challenger; Charger; Charger 500; Li' Red Express; Ram; Ramcharger; Cuda; MOPAR
High performance cam for 360. Will require computer modifications.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.7
Package Width3.1
Package Length24.3
Weight9.03 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)220
Cam StyleHydraulic roller tappet
Grind NumberCRS264HR-12
Exh. Duration Advertised (Deg)274
Engine Make/SizeMopar 273-360
Intake Valve Lift With Factory Rocker Arm Ratio (I0.512
Int. Duration @ .050 In. (Deg)210
Basic Operating Rpm Range900-5,200
Intake Valve Lift0.512 in (13.005 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)264
Lobe Separation (Deg)112
Rpm Range900-5200
Advertised Duration264 int./274 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.512
UsageOEM
Valve Lift With Factory Rocker Arm Ratio0.512 int./0.512 exh.
QuantitySold individually
Exhaust Valve Lift0.512 in (13.005 mm)
Advertised Intake Duration264
Intake Duration At 050 Inch Lift210
Exhaust Duration At 050 Inch Lift220
Advertised Exhaust Duration274
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift210 int./220 exh.
Valve Springs RequiredYes
Vendor Part Number20-604-9
Package Qty1
Package TypeEA
