Vehicle Info NeededCOMP CAMSPART NUMBER: 249-20-614-9

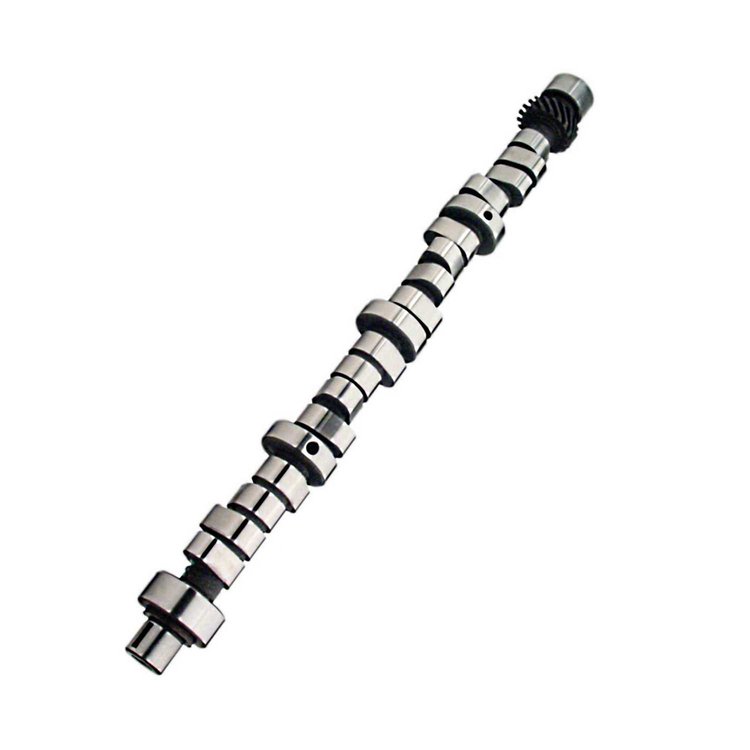

Computer Controlled Hydraulic Roller Camshaft RPM Range: 900-5200
$55895
Ships on Sep 03, 2026
Lowest Price Guarantee1964-2000 Small Block Chrysler 273-360
- Computer Controlled Roller Tappet Camshaft
- RPM Range: 900-5200
- Lift: .480"/.480"
- Advertised Duration: 264°/274°
- Lobe Separation Angle: 112°
- Best performance cam for 360 Magnum engine
- Has oil holes and a long snout
- Will require computer modifications
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA
Best performance cam for 360 engine. This cam has oil holes and a long snout, will require computer modifications.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.8
Package Width3.0
Package Length24.2
Weight9.15 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)220
Cam StyleHydraulic roller tappet
Grind NumberCRS 264HR-12
Exh. Duration Advertised (Deg)274
Engine Make/SizeMopar 273-360
Intake Valve Lift With Factory Rocker Arm Ratio (I0.48
Int. Duration @ .050 In. (Deg)210
Basic Operating Rpm Range900-5,200
Intake Valve Lift0.48 in (12.192 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)264
Lobe Separation (Deg)112
Rpm Range900-5200
Advertised Duration264 int./274 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.48
UsageOEM
Valve Lift With Factory Rocker Arm Ratio0.480 int./0.480 exh.
QuantitySold individually
Exhaust Valve Lift0.48 in (12.192 mm)
Advertised Intake Duration264
Intake Duration At 050 Inch Lift210
Exhaust Duration At 050 Inch Lift220
Advertised Exhaust Duration274
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift210 int./220 exh.
Valve Springs RequiredYes
Vendor Part Number20-614-9
Package Qty1
Package TypeEA
