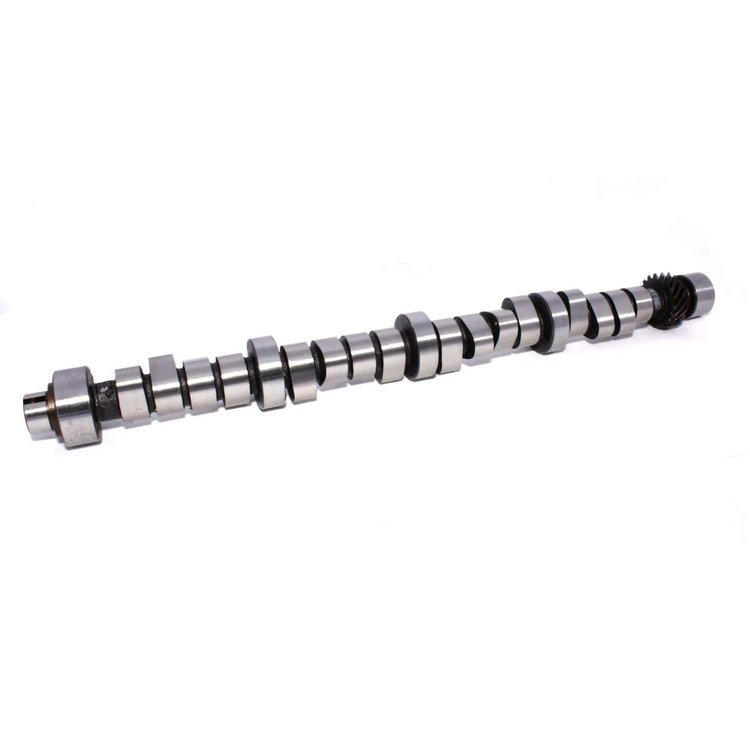

Vehicle Info NeededCOMP CAMSPART NUMBER: 249-20-628-9
Computer Controlled Hydraulic Roller Tappet Camshaft RPM Range: 700-4800
$55895
Ships on 09/09/2026
Lowest Price Guarantee1964-2000 Small Block Chrysler 273-360
- Computer Controlled Hydraulic Roller Tappet Camshaft
- RPM Range: 700-4800
- Lift: .450"/.450"
- Advertised Duration: 254°/262°
- Lobe Separation Angle: 112°
- 1986-90 with short snout and shaft 1.5:1 rockers
- Factory replacement for fuel-injected engines with shaft-mounted rocker arms
- Good torque cam in 318
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA
Factory replacement for fuel injected engines with shaft mounted rocker arms. Good torque cam in 318.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height3.0
Package Width3.0
Package Length24.3
Weight9.15 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)206
Cam StyleHydraulic roller tappet
Grind NumberCRS 254HR-12
Exh. Duration Advertised (Deg)262
Engine Make/SizeMopar 273-360
Intake Valve Lift With Factory Rocker Arm Ratio (I0.45
Int. Duration @ .050 In. (Deg)199
Basic Operating Rpm Range700-4,800
Intake Valve Lift0.45 in (11.43 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)254
Lobe Separation (Deg)112
Rpm Range700-4800
Advertised Duration254 int./262 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.45
UsageOEM
Valve Lift With Factory Rocker Arm Ratio0.450 int./0.450 exh.
QuantitySold individually
Exhaust Valve Lift0.45 in (11.43 mm)
Advertised Intake Duration254
Intake Duration At 050 Inch Lift199
Exhaust Duration At 050 Inch Lift206
Advertised Exhaust Duration262
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift199 int./206 exh.
Valve Springs RequiredYes
Vendor Part Number20-628-9
Package Qty1
Package TypeEA
