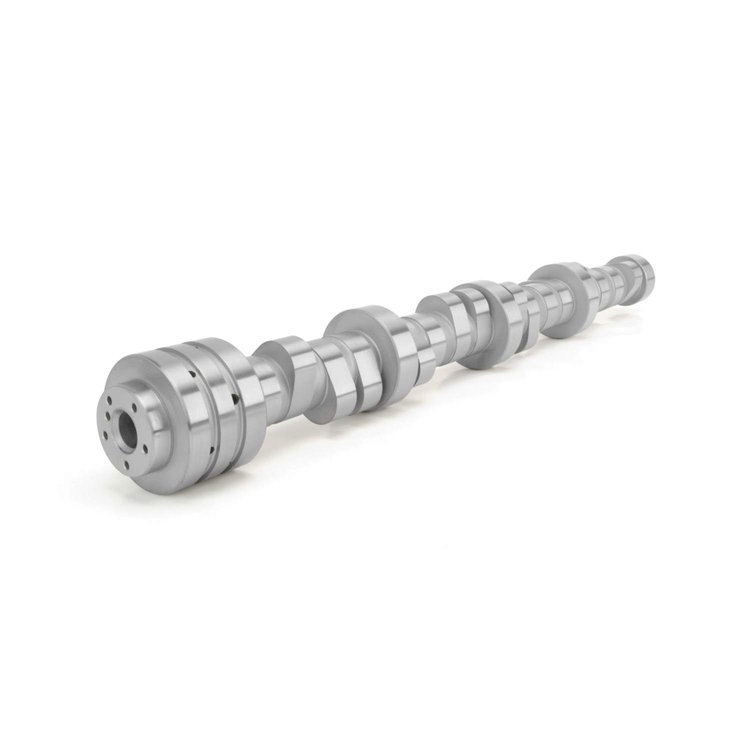

XFI Hydraulic Roller Camshaft Dodge 5.7L, 6.4L HEMI w/ VVT [Lift: .612"/.605" With 1.6 Rockers]
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-201-424-17

XFI Hydraulic Roller Camshaft Dodge 5.7L, 6.4L HEMI w/ VVT [Lift: .612"/.605" With 1.6 Rockers]

$63699
ShippingShips on Nov 02, 2026
Lowest PriceLowest Price Guarantee

Dodge 5.7L & 6.4L Hemi 2010-Present (W/VVT)
    XFI Hydraulic Roller Camshaft
    2010-Up Dodge 5.7L, 6.4L HEMI w/ VVT
  • Lift: .612"/.605" With 1.6 Rockers
  • Duration: 266°/279°
  • Lobe Separation Angle: 114°
  • RPM Range: 1800-6800

    This XFI 218/226 Hydraulic Roller Cam is for use in a Dodge 5.7/6.4L HEMI with variable valve timing (VVT) that provides the best possible valve timing to increase torque and output to improve performance, fuel economy or emissions. This cam (grind number of 266VVI14) will outperform the factory Apache camshaft.

    53022372AA


    Good improvements over the factory Apache camshaft.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

The new Hemi engines from Chrysler are great power plants straight from the factory, with technology that allows the camshaft to move in real time. Instead of scrapping this advanced system, COMP Cams has embraced it with a new line of aftermarket Hemi specific cams. These patent pending Hemi Phaser Camshafts work with phaser limiters or locks to fully utilize Chrysler's Variable Valve Timing (VVT) technology, which allows the camshaft to pick up torque in the low end of the engine while maintaining power up high. Made from a billet core, these hydraulic roller cams are engineered tough enough to handle 5.7L and 6.4L Hemi street /strip engines. Their unique, no springs required design maintains piston to valve clearance while enabling high performance lobes utilizing VVT, making them perfect for late model Dodge Challengers, Dodge Chargers, Chrysler 300s, Jeeps, Dodge trucks and Mopar crate engines with VVT. The camshafts are available as both custom and three different off-the-shelf grinds dependent upon engine type for improved performance over OEM options. COMP Cams Phaser Limiter or Lock Kits limit the degree of maximum cam phasing to 14 crank degrees (7 cam degrees) and are required for use.

Show More

Features:

  • Designed from a billet core with technology necessary to maintain the integrity of VVT technology
  • Results in large upper RPM gains without sacrificing any bottom end torque or mid-range performance
  • Perfect for late model Dodge Challengers, Dodge Chargers, Chrysler 300s, Jeeps, Dodge trucks & Mopar crates with VVT
  • Phaser Limiter or Lock Kits required for use
Part TypeCamshaft
Product LineComp Cams Chrysler Hemi Phaser Camshafts
BrandCOMP CAMS
Package Height2.8
Package Width3.0
Package Length24.3
Weight11.08 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)226
Cam StyleHydraulic roller tappet
Grind Number266WI14
Exh. Duration Advertised (Deg)279
Engine Make/SizeMopar 5.7-6.1 Hemi
Intake Valve Lift With Factory Rocker Arm Ratio (I0.612
Int. Duration @ .050 In. (Deg)218
Basic Operating Rpm Range1,800-6,800
Intake Valve Lift0.612 in (15.545 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)266
Lobe Separation (Deg)114
Rpm Range1800-6800
Advertised Duration266 int./274 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.605
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.612 int./0.605 exh.
QuantitySold individually
Exhaust Valve Lift0.605 in (15.367 mm)
Advertised Intake Duration266
Intake Duration At 050 Inch Lift218
Exhaust Duration At 050 Inch Lift226
Advertised Exhaust Duration274
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift218 int./226 exh.
Valve Springs RequiredYes
Vendor Part Number201-424-17
Package Qty1
Package TypeEA
