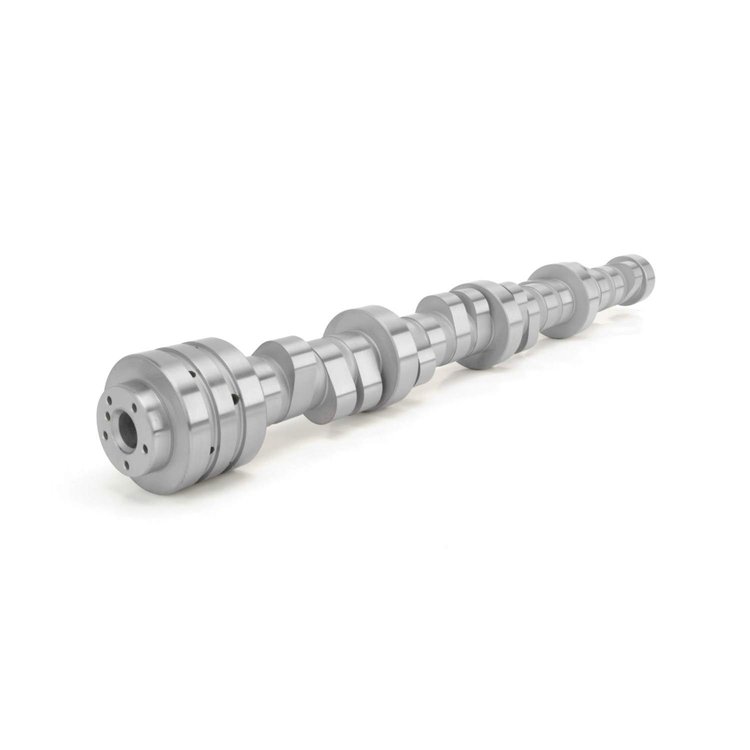

XFI Hydraulic Roller Camshaft Dodge 5.7/6.1L Hemi Lift: .619"/.612" With 1.6 Rockers
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-201-428-17

XFI Hydraulic Roller Camshaft Dodge 5.7/6.1L Hemi Lift: .619"/.612" With 1.6 Rockers

$63695
ShippingShips on 09/15/2026
Lowest PriceLowest Price Guarantee

Dodge 5.7L & 6.1L Hemi 2010-Present (W/VVT)
    XFI Hydraulic Roller Camshaft
    Dodge 5.7/6.1L Hemi
  • Lift: .619"/.612" With 1.6 Rockers
  • Duration: 274°/287°
  • Lobe Separation Angle: 116°
  • RPM Range: 2400-7400

    53022372AA


    Requires either added displacement or high RPM modifications in street/strip applications.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

The new Hemi engines from Chrysler are great power plants straight from the factory, with technology that allows the camshaft to move in real time. Instead of scrapping this advanced system, COMP Cams has embraced it with a new line of aftermarket Hemi specific cams. These patent pending Hemi Phaser Camshafts work with phaser limiters or locks to fully utilize Chrysler's Variable Valve Timing (VVT) technology, which allows the camshaft to pick up torque in the low end of the engine while maintaining power up high. Made from a billet core, these hydraulic roller cams are engineered tough enough to handle 5.7L and 6.4L Hemi street /strip engines. Their unique, no springs required design maintains piston to valve clearance while enabling high performance lobes utilizing VVT, making them perfect for late model Dodge Challengers, Dodge Chargers, Chrysler 300s, Jeeps, Dodge trucks and Mopar crate engines with VVT. The camshafts are available as both custom and three different off-the-shelf grinds dependent upon engine type for improved performance over OEM options. COMP Cams Phaser Limiter or Lock Kits limit the degree of maximum cam phasing to 14 crank degrees (7 cam degrees) and are required for use.

Show More

Features:

  • Designed from a billet core with technology necessary to maintain the integrity of VVT technology
  • Results in large upper RPM gains without sacrificing any bottom end torque or mid-range performance
  • Perfect for late model Dodge Challengers, Dodge Chargers, Chrysler 300s, Jeeps, Dodge trucks & Mopar crates with VVT
  • Phaser Limiter or Lock Kits required for use
Part TypeCamshaft
Product LineComp Cams Chrysler Hemi Phaser Camshafts
BrandCOMP CAMS
Package Height2.8
Package Width3.0
Package Length24.3
Weight11.29 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)234
Cam StyleHydraulic roller tappet
Grind Number274WI16
Exh. Duration Advertised (Deg)287
Engine Make/SizeMopar 5.7-6.1 Hemi
Intake Valve Lift With Factory Rocker Arm Ratio (I0.619
Int. Duration @ .050 In. (Deg)226
Basic Operating Rpm Range2,100-7,100
Intake Valve Lift0.619 in (15.723 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)274
Lobe Separation (Deg)116
Rpm Range2400-7400
Advertised Duration272 int./282 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.612
Valve Lift With Factory Rocker Arm Ratio (In.)0.619/0.612 exh.
UsageStreet/Strip
QuantitySold individually
Exhaust Valve Lift0.612 in (15.545 mm)
Advertised Intake Duration272
Intake Duration At 050 Inch Lift224
Exhaust Duration At 050 Inch Lift234
Advertised Exhaust Duration282
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift224 int./234 exh.
Valve Springs RequiredNo
Vendor Part Number201-428-17
Package Qty1
Package TypeEA
