COMP CAMSPART NUMBER: 249-224-300-13

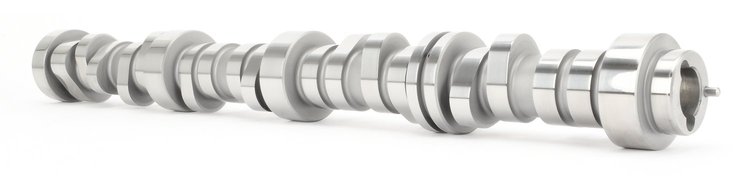

CAM LT1 CAMARO W/AFM DEL
$60395
- Stage 1 LST Cam for LT1 Camaro and Corvette w/ AFM Delete
GM, 4.8, 5.3, 5.7, 6.0, 6.2, 7.0, LS1, LS2, LS3, LS4, LS6, LS7, LSA, LS9, Camaro, Silverado, LS Swap, 383, 350, SBC, Chevelle, Yukon, L92, LM7, 325, GMC, Trailblazer, Corvette, GM LS, GEN III, GEN 3, GEN IV, GEN 4, DOD, AFM, VVT, BTR, Texas Speed
Broad powerband with best average torque & HP in LT1. Includes higher volume direct injection lobe (+38%). 7400 RPM stability w/ CK & MK Kits. AFM delete & VVT limiter.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height3.0
Package Width3.0
Package Length24.0
Weight10.0 PG
Part CategoryPerformance Parts
Intake Duration At .050 Inch Lift227 deg
Camshaft Gear Attachment1-Bolt
Lobe Separation116.5 deg
MaterialBillet Steel
Grind Number282LMH16
Exhaust Valve Lift0.639 in
Advertised Intake Duration282 deg
Basic Operating Rpm Range2,000-7,200
Intake Valve Lift0.650 in
Exhaust Duration At .050 Inch Lift238 deg
Advertised Exhaust Duration287 deg
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Lifters IncludedNo
Vendor Part Number224-300-13
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
