Product Discontinued

COMP CAMSPART NUMBER: 249-26055-1

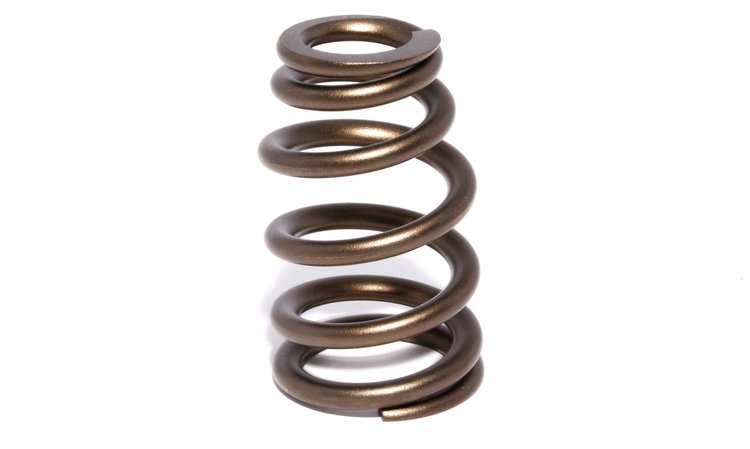

Beehive Valve Spring Universal

Name: Beehive Valve Spring Universal
Brand: COMP CAMS
SKU: 249-26055-1
Price: 35.95 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Universal

Universal
O.D. Base: 1.585
1/pkg

Specs
OD: Top 1.204" Bottom 1.585"
ID: Top .731" Bottom 1.112"
Seat Pressure: 150 lbs @ 1.925'
Open Pressure: 410 lbs @ 1.275'
Coil Bind: 1.225"
Spring Rate: 400 lbs/in
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit

Advanced Beehive Valve Spring Technology

Comp Cams Beehive Valve Springs are revolutionizing performance street/strip applications! These valve springs deliver increased valve train stability while offering a reduction in weight. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and the retainer. Using Comp Spintron testing equipment, the Beehive spring was engineered to maximize "harmonic resistance" through reduced mass and unique coil spacing.

With highly reduced internal spring harmonics, engines equipped with these state-of-the-art Beehive valve springs rev higher and live longer as compared with other "performance" springs. For street/strip applications, these valve springs are the best choice possible. Because of the unique Beehive design, the valve train can handle more rpm and more aggressive cam profiles for occasional bracket racing but still retain durability for street driving.

Part TypeValve Spring

Product LineComp Cams Beehive Valve Springs

BrandCOMP CAMS

Package Height1.5

Package Width1.5

Package Length2.75

Weight0.25 PG

Part CategoryPerformance Parts

CoatedNo

Damper Spring IncludedNo

Spring Rate400 lbs./in.

PositionN/A

Open Height1.275 in (32.4 mm)

Open Pressure (Lbs.)410

Installed Pressure (Lbs.)150

QuantitySold individually

Installed Height1.93 in (49.022 mm)

Valve Spring StyleBeehive

Outside Diameter Of Outer Spring1.585 in (40.3 mm)

Inside Diameter Of Outer Spring0.63 in (16.002 mm)

Inside Diameter0.731/1.112

Spring TypeSingle

Spring Rate (Lbs./In.)400

Part FitmentSemi Universal

Outside Diameter1.204 in (30.6 mm)

Number Of Springs Per ValveSingle

Camshaft TypeOEM

Vendor Part Number26055-1

Package Qty1

Package TypeEA
