Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

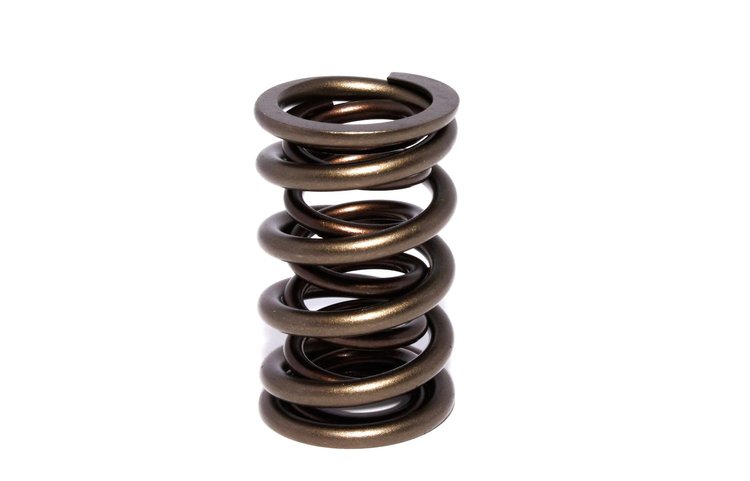

1.565 in. Outside Diameter
- Dual Valve Springs
- Outer Spring O.D.: 1.565 in.
- Outer Spring I.D.: 1.127 in.
- Inner Spring I.D.: 0.803 in.
- Seat Load: 230lbs
- Coil Bind: 1.230 in.
- Spring Rate: 500lbs/in.
- Without damper
- Sold Individually
- Hi-Tech Oval Track
- Dyno And Track Testing
- 1 Year Limited Warranty
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Part TypeValve Spring
BrandCOMP CAMS
Package Height2.1
Package Width2.9
Package Length4.6
Weight0.2 PG
Part CategoryPerformance Parts
CoatedNo
Damper Spring IncludedNo
Spring Rate500 lbs./in.
PositionN/A
Open Height1.3 in (33 mm)
Open Pressure (Lbs.)580
Installed Pressure (Lbs.)230
QuantitySold individually
Installed Height2 in (50.8 mm)
Inside Diameter Of Inner Spring0.812 in (20.625 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.55 in (39.4 mm)
Inside Diameter Of Outer Spring1.136 in (28.854 mm)
Inside Diameter0.812 in (20.625 mm)
Spring TypeDouble
Spring Rate (Lbs./In.)500
Part FitmentSemi Universal
Outside Diameter1.55 in (39.4 mm)
Number Of Springs Per ValveDual
Camshaft TypeOEM
Vendor Part Number26089-1
Package Qty1
Package TypeEA
