Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Universal

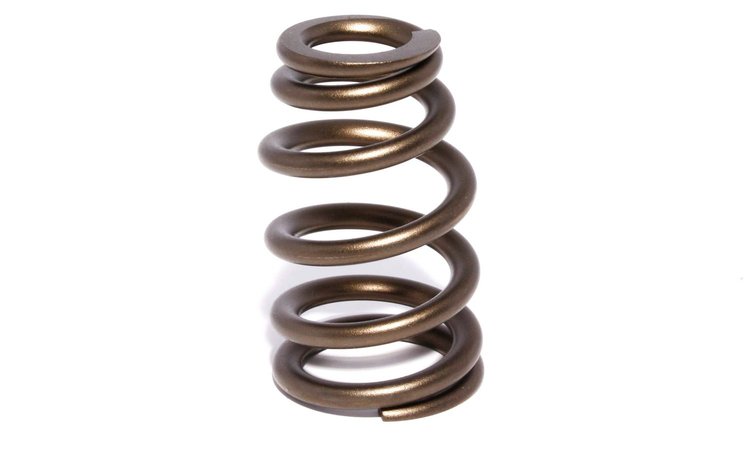

- Beehive Valve Spring
- Universal
- O.D. Base: 1.590
- 1/pkg
SpecsOD: Top 1.185" Bottom 1.589"
ID: Top .731" Bottom 1.135"
Seat Pressure: 155 lbs @ 1.88'
Open Pressure: 377 lbs @ 1.280'Coil Bind: 1.230"
Spring Rate: 370 lbs/inValve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Part TypeValve Spring
BrandCOMP CAMS
Package Height2.0
Package Width4.0
Package Length6.0
Weight0.39 PG
Part CategoryPerformance Parts
CoatedNo
Damper Spring IncludedNo
Spring Rate293 lbs./in.
PositionN/A
Open Height1.25 in (31.8 mm)
Open Pressure (Lbs.)370
Installed Pressure (Lbs.)150
QuantitySold individually
Installed Height2 in (50.8 mm)
Valve Spring StyleBeehive
Outside Diameter Of Outer Spring1.589 in (40.4 mm)
Inside Diameter Of Outer Spring1.135 in (28.829 mm)
Inside Diameter0.731/1.132
Spring TypeSingle
Spring Rate (Lbs./In.)293
Part FitmentSemi Universal
Outside Diameter1.589 in (40.4 mm)
Number Of Springs Per ValveSingle
Camshaft TypeOEM
Vendor Part Number26095-1
Package Qty1
Package TypeEA
