Ford Modular

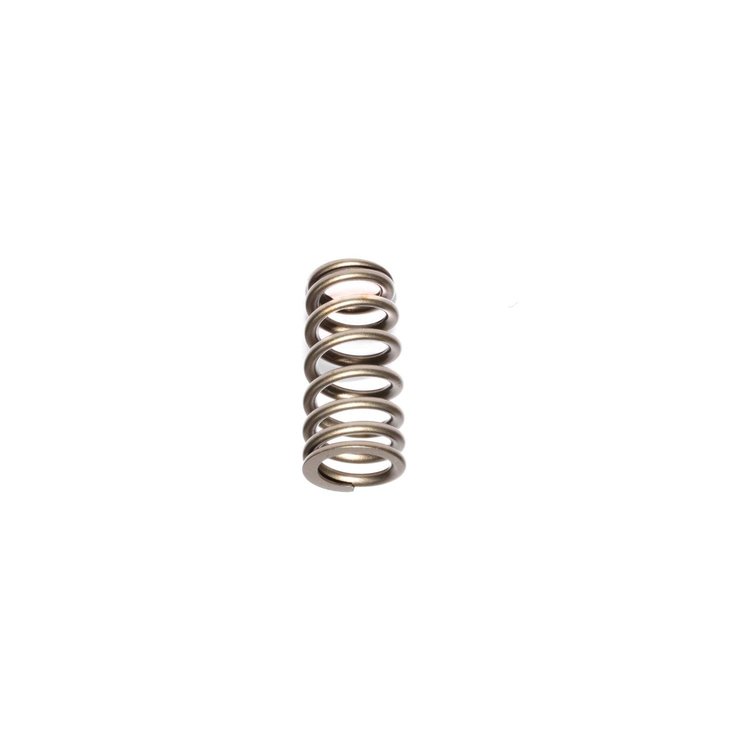

- Beehive Valve Spring
- Ford 4.6L/5.4L 2V & 3V
- O.D. Base: 1.101
- 1/pkg
Specs
OD: Top 1.013" Bottom 1.101"
ID: Top .650" Bottom .738"
Seat Pressure: 120 lbs @ 1.640"
Open Pressure: 275 lbs @ 1.040"
Coil Bind: .970"
Spring Rate: 258 lbs/inValve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Part TypeValve Spring
BrandCOMP CAMS
Package Height1.75
Package Width4.0
Package Length6.0
Weight0.11 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height0.902 in (22.911 mm)
Damper Spring IncludedNo
PositionN/A
Open Height1.75 in (44.5 mm)
Open Pressure (Lbs.)275
Installed Pressure (Lbs.)120
QuantitySold individually
Installed Height1.64 in (41.656 mm)
Valve Spring StyleBeehive
Outside Diameter Of Outer Spring1.061 in (26.9 mm)
Inside Diameter Of Outer Spring0.738 in (18.745 mm)
Inside Diameter0.650/0.738
Spring TypeSingle
Spring Rate (Lbs./In.)258
Part FitmentSemi Universal
Outside Diameter1.101 in (28 mm)
Number Of Springs Per ValveSingle
Camshaft TypeHydraulic
Vendor Part Number26125-1
Package Qty1
Package TypeEA
